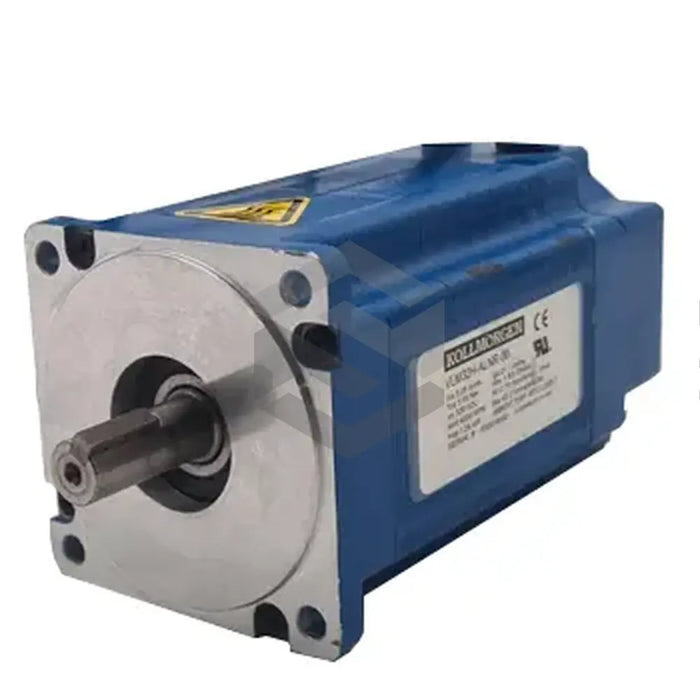

P image of VLM31E-BKNC-30

VLM31E-BKNC-30

by Kollmorgen
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Kollmorgen VLM31E-BKNC-30 is a brushless servomotor, designed for use with Kollmorgen's AKD series of 120/240VAC servo drive systems. With a size equivalent to a NEMA 34 square frame, it bridges the gap between high-end servomotors and more traditional stepper or induction motors. Providing a continuous stall torque of 1.96Nm at a winding temperature of 100°C, it operates at an ambient temperature of 40°C. The brushless motor, which is part of Kollmorgen's VLM series, yields an impressive torque to cost ratio, making it a cost-effective solution for full machine control and motion applications. The 2,000RPM at 160VDC rated motor has a shaft length of 1.25 inches and uses an aluminum plate as a heat sink. Although a brake inclusion is not supported, it features fixed connectors and cables, as well as an optional 3-meter cable length.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product Type

Brushless Servomotor

Use With

AKD series of 120/240VAC servo drive systems

Frame

Square NEMA 34

Maximum DC Bus Voltage

320VDC

Function

Full machine control and motion applications

Operating Temperature

40°C

Continuous Stall Torque

1.96Nm at 100°C winding temperature

Connectivity

Fixed connectors and cables

Brake

Not Supported

Rated Speed

2000RPM at 160VDC

Shaft Length

1.25 inches

Heat Sink Material

Aluminium

Pole Pairs

Three

Winding Type

E

Shaft Type

B type with NEMA style mount

Cable Length

Optional 3-meter cables

Feedback Device

Incorporates Smart Feedback Device (SFD)

Design

Standard configuration, low-cost

Magnets

High-performance, integrated
