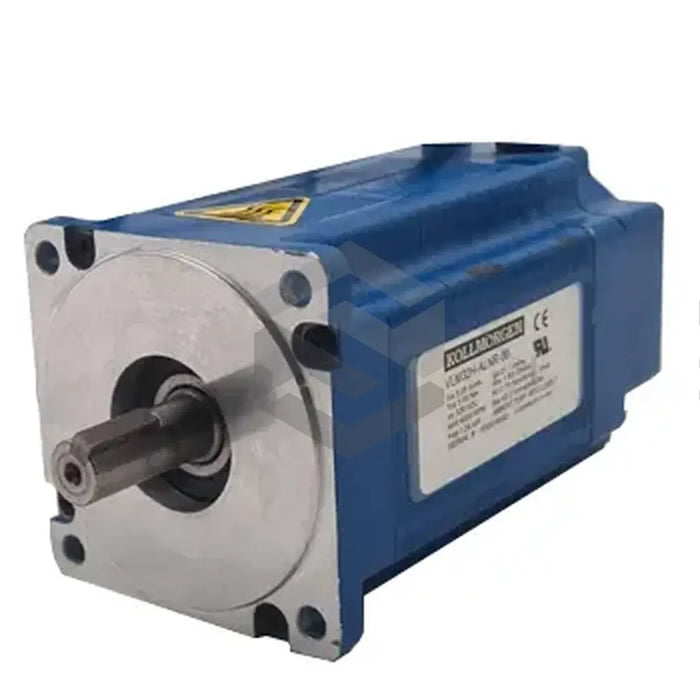

P image of VLM32H-ALNR-00

VLM32H-ALNR-00

by Kollmorgen
$981.34 - $1,430.00
$981.34
$981.34 - $1,430.00
$981.34

Available, Shipping Varies

The Kollmorgen VLM32H-ALNR-00 is a VLM series brushless servomotor, enclosed in a 90mm or NEMA 34 square frame. Manufactured with high-quality materials, it offers a cost-effective design and direct connect, with no need for intermediate cables. The motor is compatible with Kollmorgen’s AKD PDMM servo drives, facilitating machine control and motion applications without requiring an external PLC. Technical specs include a maximum radial force of 280N, axial force of 1330N, thermal time constant of 20.5 minutes, and a lifespan of 20,000 hours for the bearings. The heat sink measures 10x10x0.25 inches, and the unit does not include a brake. The motor incorporates a resolver for feedback and is both cUL and UL Listed. This robust, high-performance servomotor is suitable for multiple sectors, including robotics, aerospace, defense, medical imaging, and pharmaceutical manufacturing.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product Code

VLM32H-ALNR-00

Series

VLM

Type

Brushless Servomotor

Frame Size

90mm Metric/NEMA 34

Connection

With fitted connectors and cables

Control Device

AKDs PDMM servo drives

Max Radial Force

280N

Max Axial Force

1330N

Shaft Type

A-type metric mounting

Winding Type

H

Thermal Time Constant

20.5 minutes

Bearings Lifespan

20000 hours

Continuous Stall Current

5.26A

Heat Sink Size

10 x 10 x 0.25 inches

Rotor Stack Length

2

Brake

Not equipped

Feedback Device

Resolver

Listed Certification

cUL Listed, UL Listed

Rated Power

0.68kW

Thermal Resistance

1.2°C/W

Static Friction

0.15Nm

Inertia

3.37kg-cm2
