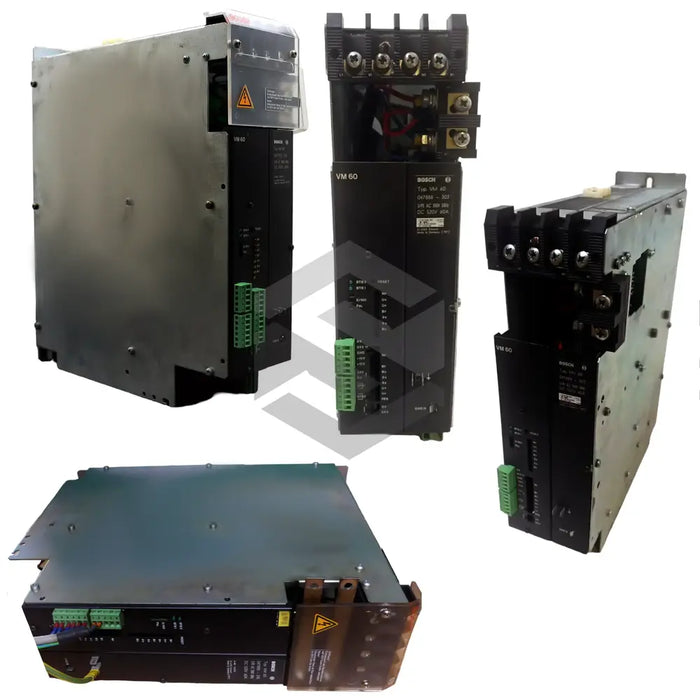

S image of VMA 070CR 001-D

VMA 070CR 001-D

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The VMA 070CR 001-D is a compact power module from Bosch Rexroth Indramat that employs a typical air-cooling mechanism for heat dissipation. With a width of 150 millimeters and sinusoidal recovery, it offers a mains-friendly energy recovery. It delivers a rated current of 68 amperes and nominal power of 47 kW at 45 degrees Celsius, peaking at a power output of 70 kW. The module doesn't come with a ballast switch. Its DC supply, rated at 24 volts, inputs 2.7 A and loses 800 Watts power. The module, weighing 14.3 kg, connects to the mains supply through a NE line reactor and an NAA 70 mains connection module. Its firmware can be retroactively updated using an MC-VM memory card. To operate the module effectively, a personality module and an RM backplane module are required. The device is compatible with both RMC/VM and RMC/VMC cold modules, both boasting a standard fan design.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

VMA 070CR 001-D

Design

Compact

Heat Loss Mechanism

Standard air-cooling

Module Width

150 millimeter

Rated Current

68 Amperes at 45 degrees C

Nominal Power

47 kW at 45 degrees C

Peak Power Output

70 kW

Ballast Switch

Absent

DC Supply Voltage

24V

DC Supply Current

2.7A

Power Loss

800 Watts

Weight

14.3 kg

Mains Connection Module

NAA 70, COOLING: natural convection, RATED VOLTAGE: 400V AC at 48 – 62 Hz, WEIGHT: 8.4 kg

Firmware

Stored on MC-VM memory card, purchasable

Additional Required Module

Personality module (PM VMA…), RM backplane module

Backplane Modules

RMC/VM standard module, RMC/VMC cold module, 2 standard fan designs, WIDTH: 150 mm.
