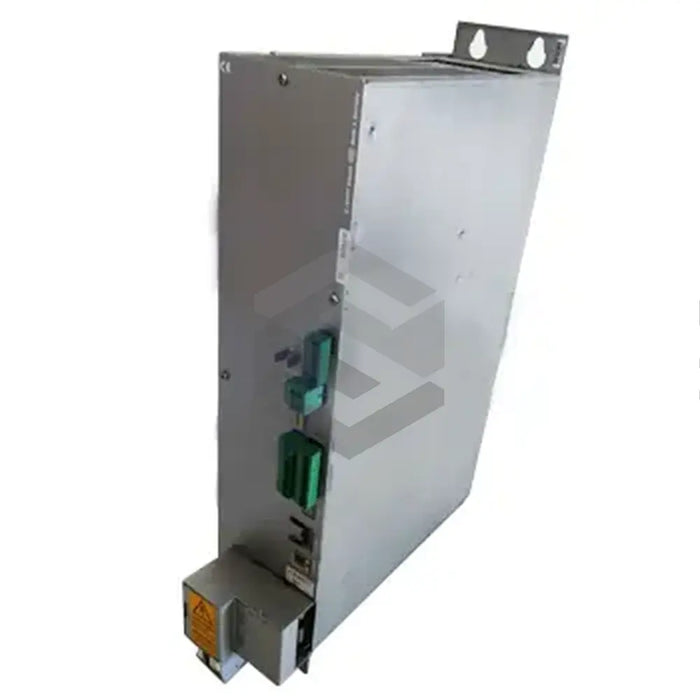

VMA 20KE 001-D
The VMA 20KE 001-D, produced by Bosch Rexroth Indramat, is a power supply module belonging to the VM series. Known for its high-quality automation equipment, Bosch's technologically sophisticated module weighs approximately 15kg and is conveniently easy to install. With a 100mm width, it requires a 24V power supply with a 1A current. It functions effectively on a frequency of either 50Hz or 60Hz. With supply voltages of 380VAC and 415VAC, it provides a rated current of 23A at 45°C, undergoing power derating of 0.62W/K at temperatures above 45°C. Notably, multiple controls and drives can be easily connected with this singular power supply unit. To ensure safety and optimal operation, the device comes equipped with a state-of-the-art diagnostic module offering various alerts such as overvoltage, undervoltage, and overtemperature warnings. It is designed with a maximum power loss of 220W and has the capacity for a maximum one-time brake energy of 58000Ws. Finally, it has a maximum continuous braking power of 1000W.
