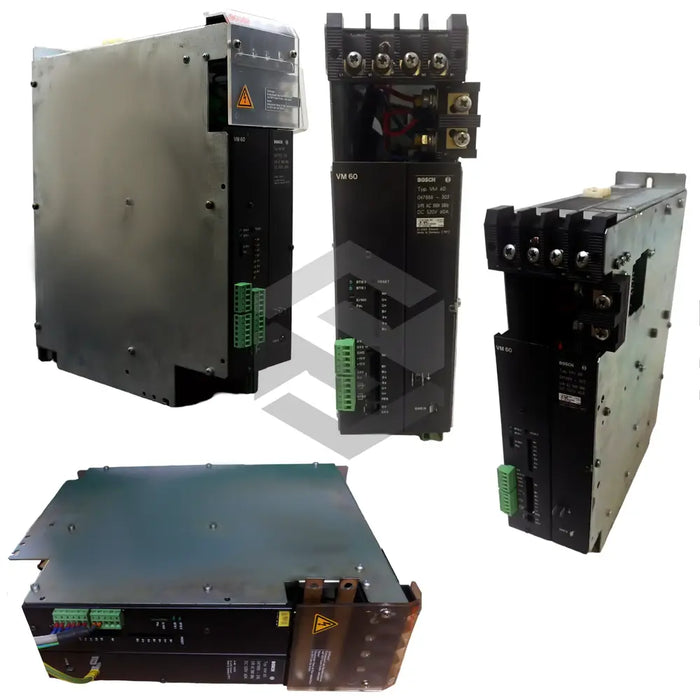

manufacturer image of VMA 35BR 001-D

VMA 35BR 001-D

by Bosch Rexroth Indramat
$4,538.00 - $4,538.00
$4,538.00
$4,538.00 - $4,538.00
$4,538.00
Available, Shipping Varies
The Bosch Rexroth Indramat VMA 35BR 001-D is a power supply module employed for controlling multiple clutches and brakes, featuring an adjustable output current. The 11.1kg compact unit, with a width of 100mm, lacks a digital interface but offers monitoring and connectivity to a dead-man’s key. A seven-segment display indicates the current software release when the T dip switch on the unit's personality module is activated. The unit touts two multi-digit displays that warn of overtemperature when the heatsink exceeds 75°C, necessitating a fan and air supply check. Replacement is required in case of a sync error. The device has STA relay connection through its X06 connector, power-off delay settings via its S1 hex switch, and DC link connections secured with 5Nm torque. It also has a rated current of 35A, a rated power of 24kVA, and operates optimally at 45°C.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Name: VMA 35BR 001-D
  • Product Type: Power Supply Module
  • Module Usage: Control of several clutches and brakes
  • Structure: Compact
  • Feature: Sinusoidal recovery capability
  • Weight: 11.1kg
  • Width: 100mm
  • Digital Interface: Not supported
  • Monitoring Capability: Yes
  • Connectivity: Dead-mans key
  • Display: Seven-segment
  • Display Use: Indicates current software release during test operation
  • Temperature Warning: Over 75°C
  • Warning Indicator: Multi-digit displays
  • Active Warning: Indicates overtemperature
  • Replacement Trigger: Synchronization error
  • Special Feature: X06 connector with two pins for STA relay
  • Power-Off Delay Adjuster: S1 hex switch
  • Attachment: Conductor bars can be attached via terminal blocks
  • Key Required: SW 4 Allen key
  • Shipping: Worldwide
  • Secured DC Link Connections: 5Nm tightening torque
  • Rated Current: 35A
  • Rated Power: 24kVA
  • Ideal Operating Temperature: 45°C
  • Error Indication: STA contact opens up on terminal strip
  • Connection Feature: X32 terminal strip for control cable plugging into mains connection module.
