VPB40.3D1L-2G0NN-C3D-DN-NN-FW

Original price $0.00 - Original price $0.00
Original price
Request a Quote
$0.00 - $0.00
Current price Request a Quote

Request a quote

Add a Message

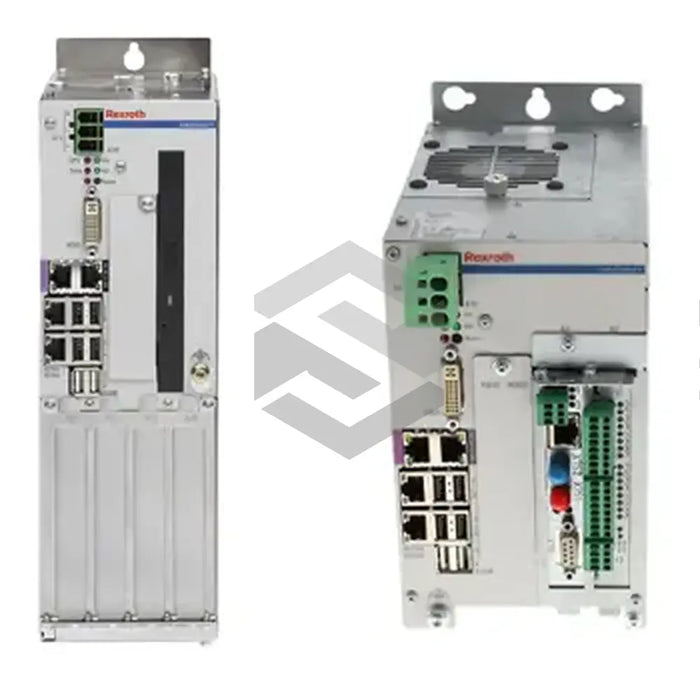

The VPB40.3D1L-2G0NN-C3D-DN-NN-FW, produced by the Bosch Rexroth Group, is a command cabinet PC that links with the VDP 16.3 or VDP 40.3 operator display to form a PC-based terminal. An 80-meter cable links the two components, enabling separate installation. It's especially suitable for use in industry, including packaging machines, assembly systems, and machine tools. The device features a variety of interfaces, consumes up to 80W power, operates on a 24V DC voltage supply, and has an IP 20 protective rating. It also boasts robust mechanical stability with specific acceleration and excursion parameters. The terminal operates optimally in 5-45°C temperatures, relative humidity between 5% and 85%, and at altitudes up to 3,000 meters. It carries UL and CSA certifications. Its CMOS battery lasts up to 7 years, and the hard drive runs efficiently for less than 3,000 hours annually. Annual maintenance checks are recommended.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer


Bosch Rexroth Indramat

Product Type


Control cabinet PC

Interface


CDI interface, two RJ45 interfaces, one DVI, six USB connections, two Ethernet connection with RJ45, voltage connection

Power Consumption


80W maximum

Voltage Supply


DC 24V

Protection Degree


IP 20

Mechanical Strength


1g acceleration for 57 to 150Hz, 0.075mm excursion for 10 to 57Hz, frequency range of 10 to 150 Hz

Operating Temp.


5 to 45 degrees

Operating Humidity


5% to 85%

Operating Air Pressure


up to 3000m above sea level

Certification


UL and CSA certified

CMOS Battery Lifespan


maximum of seven years

Hard Drive Operating Time


on fewer than 3000 hours per year

Ambient Conditions


Temperature of 5 to 60 degrees, Relative humidity of 8% to 90%, Operating height of -300m to 3,000m

Service Check


Terminal and plugin connections annually, Fan annually.
