manufacturer image of VPP40.1BIA-1G0NN-M1C-BN-NN-FW

VPP40.1BIA-1G0NN-M1C-BN-NN-FW

by Bosch Rexroth Indramat
$3,624.50 - $3,624.50
$3,624.50
$3,624.50 - $3,624.50
$3,624.50
Available, Shipping Varies

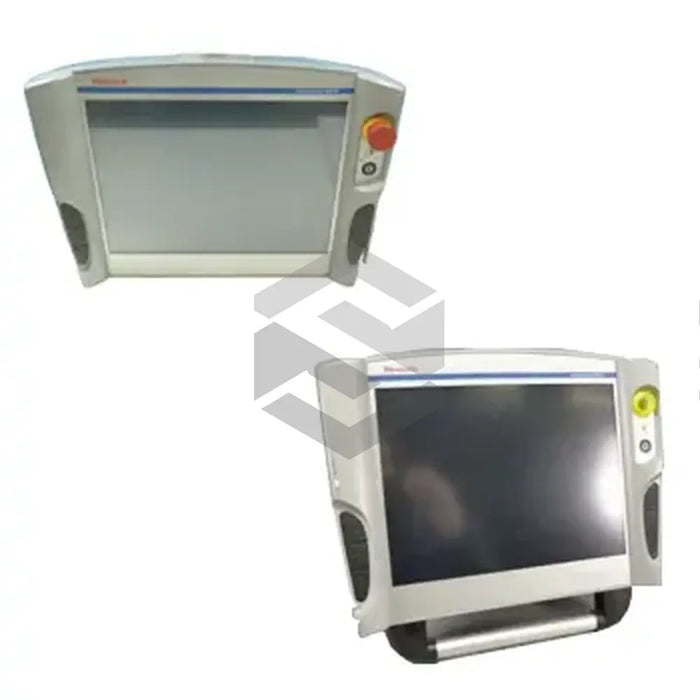

The Bosch Rexroth Indramat VPP40.1BIA-1G0NN-M1C-BN-NN-FW is a sophisticated PC-based operator terminal used for exchanging digital data with industrial servos systems. Renowned for its resilience and adaptability, the terminal features a dust and water-resistant front panel (IP65) for dependable operation in rigorous industrial conditions. To run efficiently, it requires a connection to a PC box with extensive interfaces, like a 25-pin parallel interface, 15-pin VGA, two Type A USB ports and an Ethernet connection, among others. The terminal communicates with the operator through a 15-inch Thin-Film Transistor terminal that supports 260,000 colors. The control panel also includes a 16-key pressure-sensitive keypad and warning LEDs for error notifications. The terminal involves an external battery for backing up during power failures and functions in compliance with internationally recognized standards such as EN 60068-2-27, EN 50 204-1, and EN 50 081-2.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: VPP40.1BIA-1G0NN-M1C-BN-NN-FW
  • Product Type: PC-based visual operator terminal
  • Protection Level: IP65
  • Required Connection: PC box
  • Communication Interfaces: Parallel interface (25-pin, D-Sub), External VGA connection (15-pin, HD-Sub), Two USB connections (type A), Ethernet connection (RJ 45, 10/100 Base-T)
  • Display: 15 inches Thin-Film Transistor terminal, capable of displaying 260000 different colors
  • Keypad: 16 pressure-sensitive keys
  • Indicators: Warning signals via special Light-Emitting-Diodes (LED)
  • Power: Requires connection to an external battery
  • Standards: Operates according to the EN 60068-2-27 shock test standard, the EN 60 204-1 international standard for electrical machines, and the EN 50 081-2 basic technical standard for emission interference.
