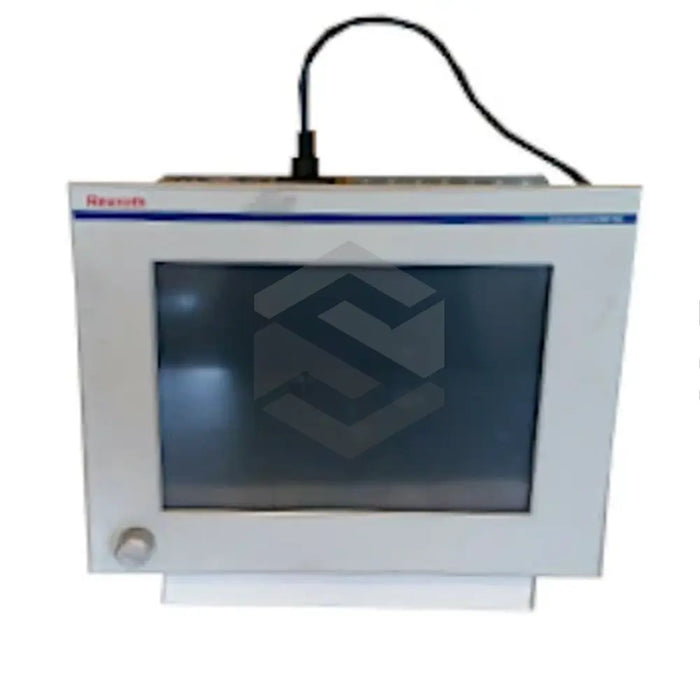

The Bosch Rexroth Indramat VSP16.1DBE-512NN-C1C-AD-NN-FW is a PC-based industrial operator terminal. It is part of the VSP series, line 16, design 1. Equipped with a 12-inch touch-sensitive TFT display, it has a 50,000-hour lifespan before backlight brightness reduces by 50%. It contains a front-panel USB interface with an IP 65 rated cover for protection. The terminal possesses a Type E PC box with six PCI slots for additional plug-in cards and is powered by an Intel Celeron processor clocked at a minimum of 2GHz. The terminal is fitted with 20GB hard disk capacity and 512MB RAM. Additional features include a DVD-ROM optical drive, interfaces for VGA, 10/100BASE-T Ethernet, RS-232, parallel connectivity, along with two Type A USB and PS/2 interfaces. Power consumption peaks at 330 Watts with a voltage range of 115-230 Volts AC. The product is rated for an ambient temperature range of -20 to 60 degrees Celsius for storage and transport.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: VSP
  • Line: 16
  • Design: 1
  • Display: 12-inch touch enabled TFT
  • USB Interface: Front panel with IP 65 rated cover
  • Front Panel Rating: IP 65
  • Front Panel Color: Light Gray
  • PC Box: Type E with 6 PCI slots
  • Processor: Intel Celeron, minimum 2 Gigahertz clock speed
  • Graphics Controller: Integrated with maximum 8 Megabytes of video memory
  • Hard Disk Capacity: 20 Gigabytes
  • RAM: 512 Megabytes
  • Optical Drive: DVD-ROM
  • Factory Installed OS: Yes
  • Interfaces: VGA connection, 10/100BASE-T Ethernet, RS-232 serial interface, parallel interface, two Type A USB interfaces and PS/2 interfaces for keyboard and mouse
  • Peak Power Consumption: 330 Watts
  • Input Voltage Range: 115 to 230 Volts AC
  • Current Input: 5.0 Amps at 115 Volts AC to 2.5 Amps at 230 Volts AC
  • Optional Power Supplies: 24 Volts DC
  • Recommended Ambient Temperature Range for Storage and Transport: -20 to 60 degrees Celsius.
