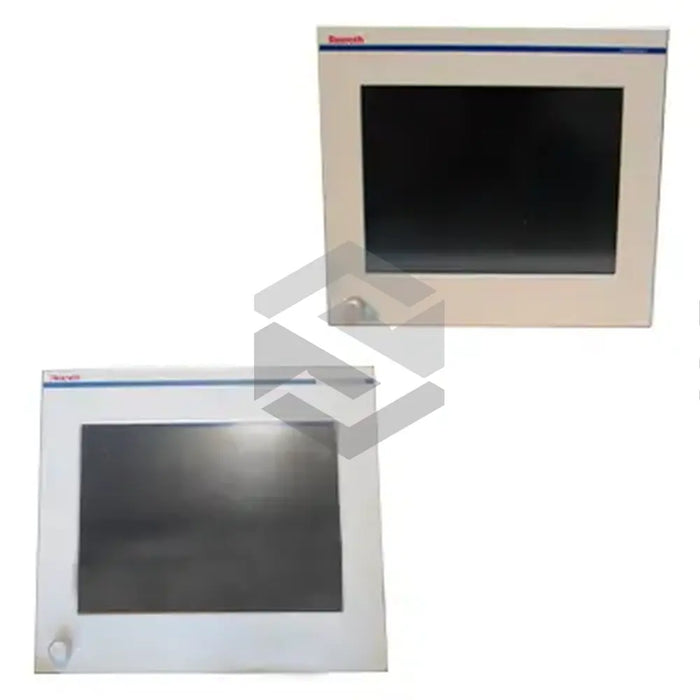

manufacturer image of VSP40.1BIE-512NN-C1C-AD-NN-FW

VSP40.1BIE-512NN-C1C-AD-NN-FW

by Bosch Rexroth Indramat
$3,415.50 - $3,415.50
$3,415.50
$3,415.50 - $3,415.50
$3,415.50
In Stock, Ships 1 - 2 Days
The VSP40.1BIE-512NN-C1C-AD-NN-FW, produced by industry leader Bosch Rexroth, is a PC-based industrial operator terminal noted for its ultra-modern design, versatility, and speed. It comes with a 2 GHz Celeron processor for swift control operations and 512 MB RAM for data storage. It includes a lithium CMOS battery with a projected lifespan of 5-7 years, allowing buffering of RAM, BIOS, and a clock. Designed to handle varying conditions, the VSP40.1 operates optimally within a temperature range of +5 to +45 degrees Celsius and can withstand high humidity levels. This model's front panel measures 407mm wide and 370mm high, and it features a display with 16 M-keys, functional and operational keys. Customizable with plug-in modules for its 6 PCI slots, the unit includes an RS232 serial interface, two USB ports, and an Ethernet connection. Additionally, it is equipped with a 20 GB hard disk drive and a DVD-ROM. Firmware must be ordered separately.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: VSP40.1BIE-512NN-C1C-AD-NN-FW
  • Processor: 2 GHz Celeron
  • RAM: 512 MB
  • Battery Type: Lithium CMOS
  • Battery Lifespan: 5 to 7 years
  • Operating Temperature: +5 to +45 degree Celsius
  • Maximum Operating Height: 2000 meters
  • Climatic Category: 3K3
  • Application: Industrial sectors such as printing machines, handling systems, mounting systems, and machine tools
  • Front Panel Dimensions: 407 mm width, 370 mm height
  • Front Panel Material: Polyester foil
  • Display: With 16 M-keys, function and operation keys
  • Number of PCI slots: 6
  • Interface: RS232 serial, 2 USB ports, 1 Ethernet connection
  • Voltage Requirement: AC 115 – 230 V
  • Voltage Frequency: 50/60 Hz
  • Hard Disk Space: 20 GB
  • Additional Components: DVD-ROM
  • Firmware: Ordered Separately
