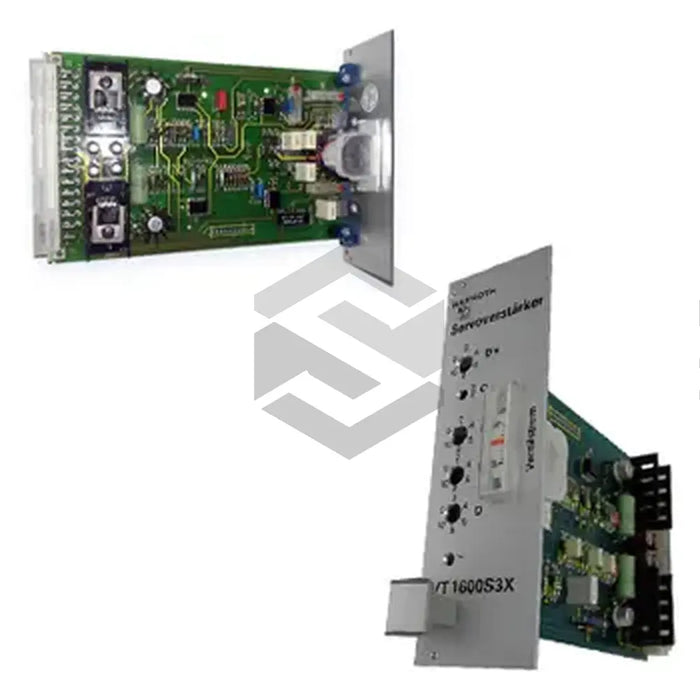

VT 11724-17
The Bosch Rexroth Indramat VT 11724-17 amplifier represents a compact and efficient solution within the VT 1600 Servo Amplifiers series, engineered for precision motion control in demanding industrial environments. This unit supports a wide input voltage range of 100–240 VAC and delivers a robust output power rating of 500 W, ensuring reliable performance across diverse applications. Designed to maintain stable operation, the amplifier incorporates an internal control voltage of 14 to ±10 V and provides dual output current options of ±60 mA and ±100 mA to accommodate varying load requirements. With an overall efficiency of 85% and a minimal power supply current draw of <<< 200 mA>>, the VT 11724-17 optimizes energy consumption while sustaining high-power delivery. The compact form factor, weighing only 0.33 lbs, facilitates straightforward integration into space-constrained control cabinets without compromising functionality. Constructed for standard installation practices, this amplifier mounts securely on a DIN Rail to simplify setup and maintenance.
Performance characteristics of the VT 11724-17 emphasize rapid response and consistent servo motor regulation under fluctuating load conditions. The amplifier’s operating temperature range spans -10 °C to +70 °C, allowing it to function reliably in both chilled manufacturing halls and warmer plant floor environments. Internal voltage regulation circuits maintain precise control over the 14 to ±10 V reference supply, ensuring that current delivery remains stable even during transient events. Advanced protection features guard against overcurrent scenarios, while optimized thermal design leverages passive airflow around the DIN Rail–mounted enclosure to dissipate heat efficiently. The dual-output current capability, paired with a dedicated power supply current threshold of <<< 200 mA>>, permits seamless interfacing with low-inertia servo systems, achieving smooth ramp-up, accurate speed control, and minimal overshoot.
Engineered for easy integration into existing control architectures, the VT 11724-17 amplifier supports direct connection to industrial motion controllers and PLC-driven servo loops without the need for extensive rewiring. Its lightweight construction and standardized DIN Rail mounting promote rapid installation and reduce downtime during system upgrades. The unit’s reliable current control and voltage stability make it well suited for applications such as robotics, material handling conveyors, packaging machinery, and precision positioning systems in industrial automation. With adherence to rigorous quality standards, the amplifier ensures consistent performance over extended duty cycles and varying environmental conditions, contributing to reduced maintenance intervals and enhanced overall system uptime.
