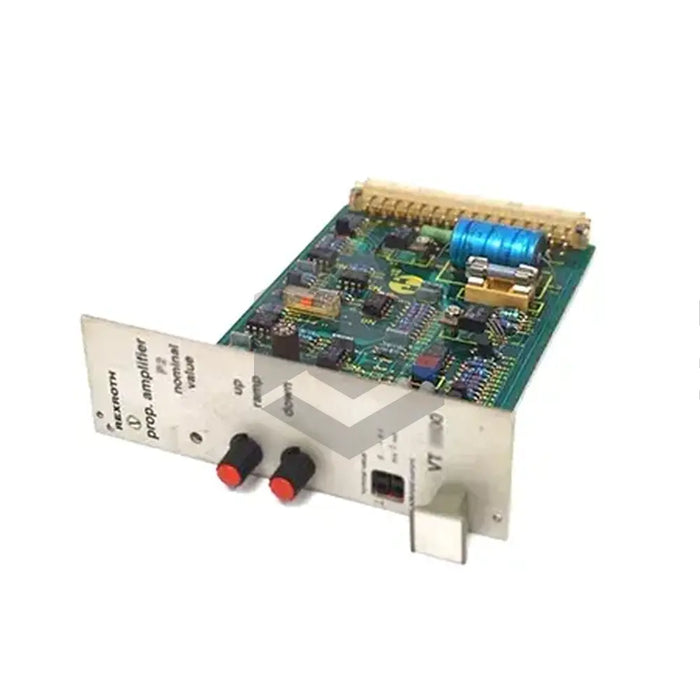

The VT 19021-30/RA1 is a proportional amplifier by Bosch Rexroth Indramat in the VT 2000 Proportional Amplifiers series. It operates on 22–35 VDC (nominal 24 VDC), consuming 25 VA and 1 A. Featuring a 32-pin male DIN connector, adjustable ramp time 30 ms–1 s or 5 s, selectable output clock 100/200 Hz, bias current 10–300 mA, solenoid drive 0–800 mA, regulated ±9 V ±1% @ ±25 mA, fuse 2.5 A T, card 100×160 mm, weight 0.1 kg, operating 0–50 °C.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Biasing current
10 mA–300 mA (via pot R130)
Card dimensions
100×160 mm (Euro-card DIN 41494)
Connector
32‑pin male (DIN 41612 form D)
Current consumption
<1 A
Front panel height
3 HE (128.4 mm)
Front panel width
3 TE + 1 TE (soldering)
Fuse rating
2.5 A T (time‑lag)
Input 1
0–9 V (ref. M0)
Input 2 (diff.)
0–10 V, 100 kΩ
Operating temperature
0–50 °C
Operating voltage
22–35 VDC
Output clock
100/200 Hz (±10%), jumper S2
Power consumption
<25 VA
Ramp time
30 ms–1 s or 5 s (jumper S1)
Regulated supply
±9 V (±1%, ±25 mA)
Solenoid current
0–800 mA (±10 mA), socket I
Storage temperature
–25 to +85 °C
Weight
0.1 kg
