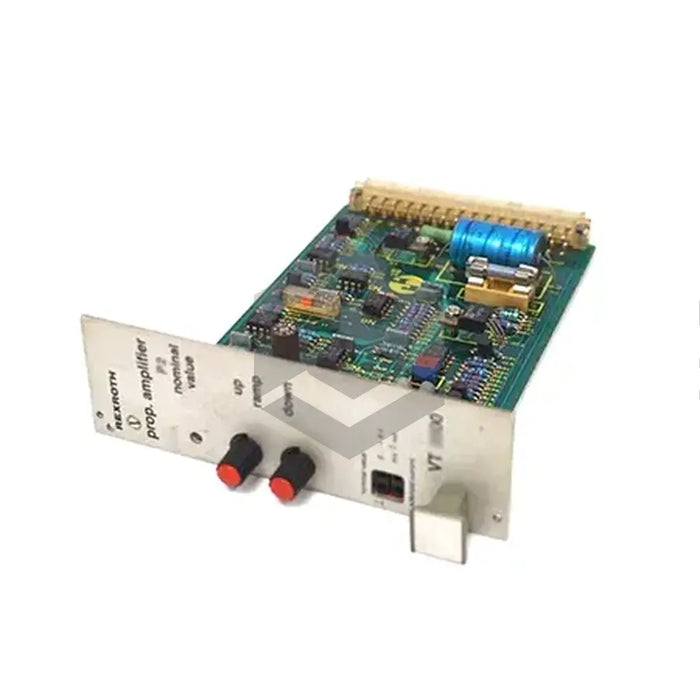

The Bosch Rexroth Indramat VT 2000-48 E2 is a proportional amplifier in the VT 2000 Proportional Amplifiers series. Operating at 24 VDC with up to 800 mA solenoid current, it features adjustable ramp time from 30 ms to 5 s, a ±9 V regulated output, built-in 2.5 A time-lag fuse, and weighs only 0.1 kg.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Actual current monitor output
0–800 mV = 0–800 mA ±10 mA
Command value monitor output
0 to +6 V (100%); Rin 1 kΩ
Connector type
32‑pin male, DIN 41612 Form D
Current consumption
<1 A
Fuse rating
2.5 A time‑lag
Input 1 (command) voltage range
0 to +9 V (ref. M0)
Input 2 (command) voltage range
0 to +10 V; Rin 100 kΩ
Operating temperature range
0°C to 50°C
Operating voltage
24 VDC (22–35 V, +40%/–5%)
Output biasing current
10–300 mA adjustable via PCB pot R130
Output clock frequency
100 or 200 Hz ±10% (jumper S2)
Power consumption
<25 VA
Ramp time adjustment
30 ms to ~1 s or ~5 s (jumper S1)
Regulated voltage output
±9 V ±1%, up to ±25 mA load
Solenoid output current
Up to 800 mA (+10%/–5%), R20=19.5 Ω
Storage temperature range
-25°C to +85°C
Weight
approx. 0.1 kg
