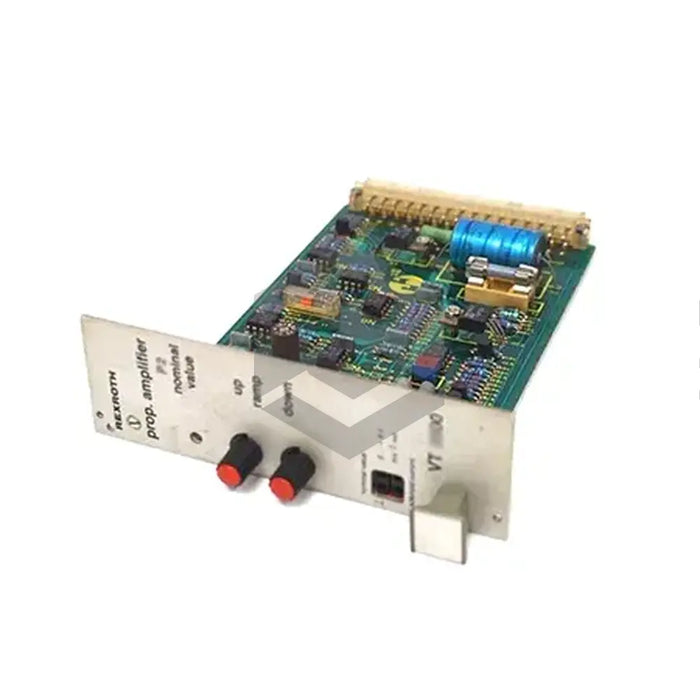

series image of VT 2000-51

VT 2000-51

by Bosch Rexroth Indramat
$1,580.00 - $1,580.00
$1,580.00
$1,580.00 - $1,580.00
$1,580.00
Available, Shipping Varies
The VT 2000-51, part of the VT-2000 series, is a proportional amplifier card developed by Bosch Rexroth Indramat. Its primary role is to regulate DBE proportional pressure relief valves and V4/'E' control-RS415 pump controls without requiring electrical position feedback. This advanced card boasts a series of features including a robust voltage stabilizer, offering consistent performance, and an embedded potentiometer that places a cap on the maximum input command voltage signals for heightened safety. One of the distinguishing facets of the VT-2000 series is the inclusion of a ramp generator, which manipulates the rate of pressure increase and decrease. Depending on the model, some allow users to independently switch off both 'up' and 'down' ramps. The cards also feature a pulse width modulated output for optimized ambient temperature stability. Other core features include a 100 Hz or 200 Hz oscillator and a 10 V differential amplifier input. It is compatible with various cardholders and operates at a voltage of 24 VDC + 40% - 5%.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Proportional Amplifier Card
  • Series: VT-2000
  • Usage: Control for DBE proportional pressure relief valves and V4/’E’ control-RS415 pump controls
  • Position Feedback: Not required
  • Voltage Stabilizer: Yes
  • Potentiometer Integration: Yes, used for limiting maximum input command voltage signals
  • Ramp Generator: Yes, for controlling pressure increase and decrease rate
  • Adjustable Ramp Times: Yes, 'up' and 'down' separately
  • Amplifier Model 'S' Feature: Allows end-user to switch off 'up' and 'down' independently
  • Output Type: Pulse Width Modulated, for dithering effect
  • Oscillator: 100 Hz or 200 Hz
  • Differential Amplifier Input: 10 V, for enabling interface with computers, microprocessors or programmable controllers
  • Compatible Holders: VT 1516-1X single card holder w/power supply, the VT 3002-1X single cardholder, VT 1700-1X double card holder w/power supply
  • Card Rack Type: Single (3u) or Double (6u)
  • Operating Voltage: 24 VDC + 40 % - 5 %
