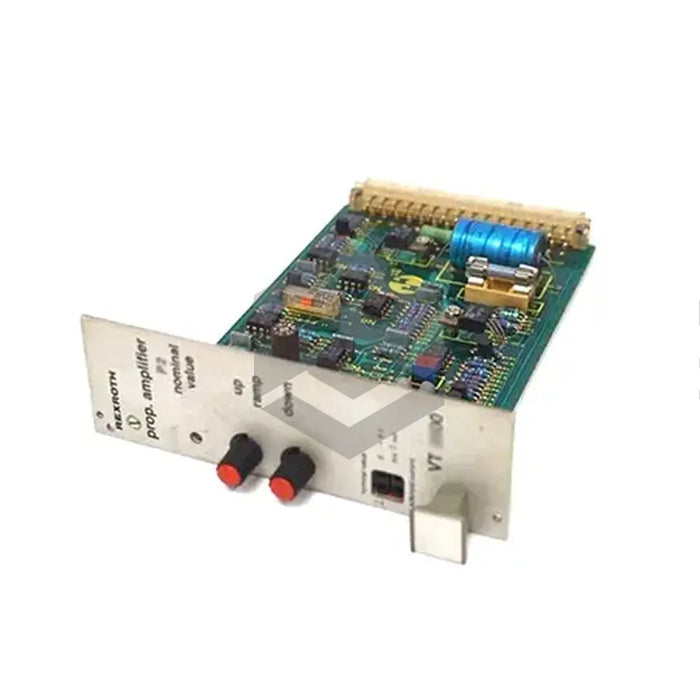

The VT 2000-52D/V0/0 from Bosch Rexroth Indramat offers an operating voltage range of 22-35 VDC and weighs 0.1 kg. Part of the VT 2000 Proportional Amplifiers, it features ramp time adjustments from 30 ms to 5 s and a power consumption under 25 VA.
It features differential inputs of 0-9 V and 0-10 V with 100 kΩ impedance and uses a 32-pin male DIN 41 612 Form D connector. The amplifier operates reliably between 0 °C and 50 °C.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Card Dimensions
100 mm x 160 mm (DIN 41 494)
Clock Frequency
100/200 Hz ±10% (jumper-selectable)
Connection Type
32-pin male DIN 41 612 Form D
Current Consumption
<1 A
Front Panel Height
3 HE (128.4 mm)
Front Panel Width
3 TE
Fuse Rating
2.5 A T (slow-blow)
Inputs
0-9 V & 0-10 V; diff. input 100 kΩ
Operating Temperature
0 to 50°C
Operating Voltage Range
22-35 VDC
Output Biasing Current
10 mA to 300 mA (adjustable)
Power Consumption
<25 VA
Ramp Time Adjustment
30 ms-1 s or 5 s (jumper-selectable)
Solder Side Width
1 TE (5.08 mm)
Solenoid Coil Resistance
19.5 Ω @20°C
Solenoid Current
800 mA (+10%/-5%)
Storage Temperature
-25 to +85°C
Weight
0.1 kg
