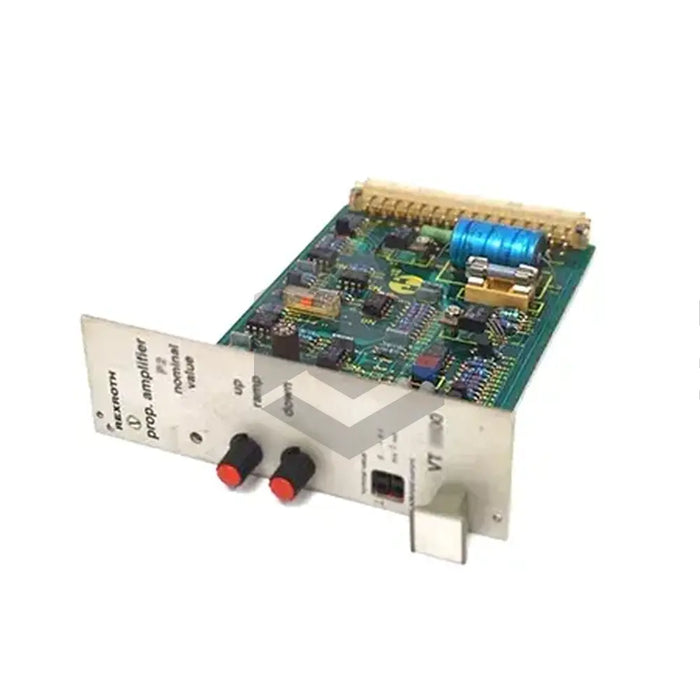

series image of VT 2000 S 40

VT 2000 S 40

by Bosch Rexroth Indramat
$2,061.00 - $2,061.00
$2,061.00
$2,061.00 - $2,061.00
$2,061.00
Available, Shipping Varies
The VT 2000 S 40, a product of Bosch Rexroth Indramat, is an electrical amplifier designed in Euro card format as part of the VT 2000 series. With features like a differential input, short-circuit protection for the solenoid cable, clocked current output stage, additional command value input, and a ramp generator, this amplifier is ideal for controlling direct and pilot operated proportional pressure control valves, especially when position feedback isn't available. This appliance requires a card holder without a power supply unit, as it includes a compact power supply unit, converting AC input into DC output at a nominal voltage of 24 Volts DC. For any malfunctions, a series of troubleshooting procedures, including inspecting the DC supply and internal command value potentiometer, among others, are to be followed. Its operation temperature ranges from 0 to 50 degrees Celsius, and it's stored between -20 to 70 degrees Celsius.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Electrical Amplifier
  • Product Series: VT 2000
  • Product Model: VT 2000 S 40
  • Format: Euro card
  • Key Features: Differential Input, Short-circuit protection, Clocked current output stage, Additional command value input, Ramp generator
  • Compatible Valves: Direct and pilot operated proportional pressure control valves without position feedback
  • Additional Requirements: Card holder without power supply unit
  • Power Unit: Compact power supply unit
  • Power Conversion: AC Input to DC Output
  • Nominal Input Voltage: 24 Volts DC
  • Troubleshooting Steps: Check DC supply, Check fuse, Check operating voltage, Check value potentiometer
  • Upper DC Input Limit: 35 Volts DC
  • Lower DC Input Limit: 22 Volts DC
  • Current Draw: Less than 1 Amp
  • Power Requirement: Less than 25 VA
  • Safety Fuse Rating: 2.5 Amps
  • Ramp Time Adjustment Range: 30 milliseconds to 1 or 5 seconds
  • Operating Temperature: 0 to 50 degrees Celsius
  • Storage Temperature: -20 to 70 degrees Celsius
