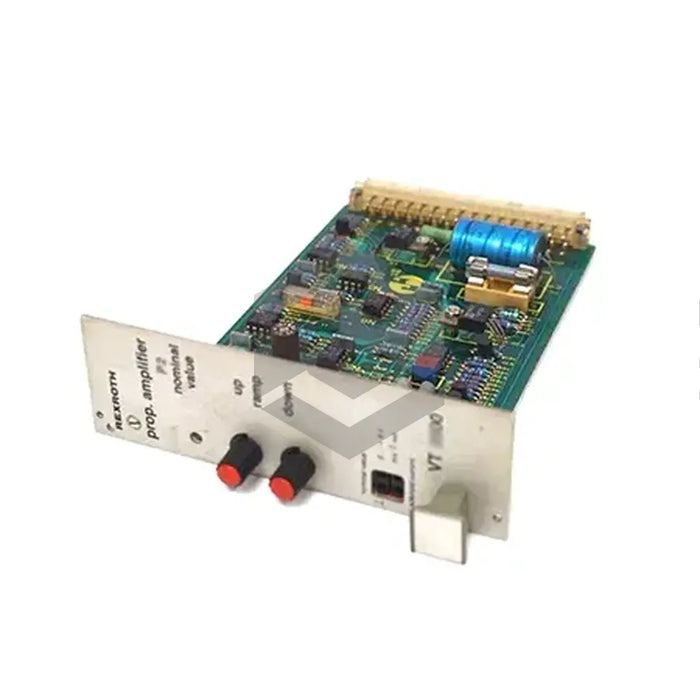

S image of VT 2000 S 47-2

VT 2000 S 47-2

by Bosch Rexroth Indramat
$1,179.90 - $1,179.90
$1,179.90
$1,179.90 - $1,179.90
$1,179.90

Available, Shipping Varies

The Bosch Rexroth Indramat VT 2000 S 47-2 is an electronic amplifier designed to be used with proportional pressure valves without electric position feedback. This compact unit is crafted in a Euro-card format, having dimensions 100 x 160 mm and a feather-light shipping weight of 100 grams. As it lacks its power supply unit, a separate card holder is required for its mounting. It operates optimally at a rated input of 24 Volts DC and has a maximum power and current intake of 25 VA and 1 Amp respectively. One standout feature is its adjustable ramp generator with settings ranging from 30 milliseconds up to either 1 or 5 seconds. Offering a protective fuse current rating of 2.5 Amps, the unit also has an output stage specification of 800 mA current for the solenoid and 19.5 Ohms resistance. A compatible 32-pin male connector adheres to DIN 41612. The device is built for conditions not exceeding 50 °C, and any spare units should be stored between -25 and 85 °C. Measurements on this amplifier must be done through a high-input impedance meter.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Electronic Amplifier

Model

VT 2000 S 47-2

Format

Euro-card

Front Panel Dimensions

128.4 x 5.08 millimeters

Amplifier Card Dimensions

100 x 160 millimeters

Approximate Weight

100 grams

Mounting Requirement

Requires Card Holder

Power Supply Requirement

No

Rated Input

24 Volts DC

Maximum Power Consumption

25 VA

Maximum Current Consumption

1 Amp

Design Purpose

Proportional Pressure Valves without Electrical Position Feedback

Feature

Adjustable Ramp Generator

Ramp Time Range

30 milliseconds - 5 seconds

Protective Fuse Current Rating

2.5 Amps

Output Stage Current

800 milliamps

Output Stage Resistance

19.5 Ohms

Biasing Current Range

0 - 300 milliamps

Clock Frequency Options

100 Hertz or 200 Hertz

Physical Connector

32-pin Male Connector (DIN 41612 compliant)

Operating Temperature

Not to exceed 50 degrees Celsius

Storage Temperature

-25 - 85 degrees Celsius

Measurement Method

High-Input Impedance Meter
