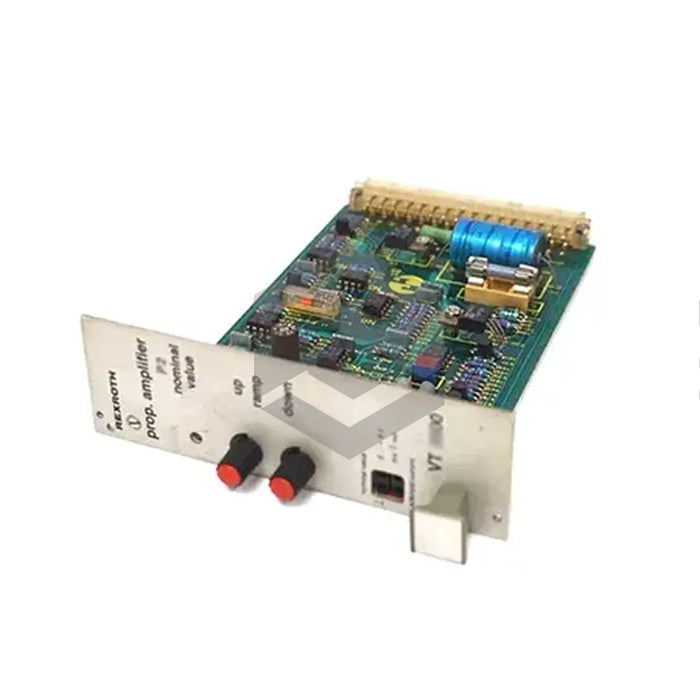

The Bosch Rexroth Indramat VT-2000-S46/1 is a precision proportional amplifier in the VT 2000 Proportional Amplifiers series. It operates on 24 VDC (<1A) with power consumption <25 VA>, offers ramp time adjustment of 30 ms–5 s and biasing current 10–300 mA, includes a 32-pin DIN connector, and weighs 0.1 kg.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Analog Input 1 Range
0–9 V
Biasing Current Range
10–300 mA adjustable
Card Dimensions
100×160 mm (Euro-card DIN 41494)
Clock Frequency
100/200 Hz (±10%) selectable
Connection Type
32-pin male connector, DIN 41612 form D
Current Consumption
<1 A
Differential Input Range
0–10 V, Rin 100 kΩ
Fuse Rating
2.5 A, slow-blow
Operating Voltage
24 VDC (+40%/–5%), 22–35 V range
Output Current Measurement
0–800 mA (1 mV/mA)
Panel Height
3 HE (128.4 mm)
Panel Width
3 TE (component), 1 TE (solder)
Permissible Operating Temperature
0–50 °C
Power Consumption
<25 VA
Ramp Time Adjustment
30 ms to 1 s or 5 s selectable
Storage Temperature
-25–85 °C
Weight
0.1 kg
