VT 3000 S 20

Original price $1,491.00 - Original price $1,491.00
Original price
$1,491.00
$1,491.00 - $1,491.00
Current price $1,491.00
Available, Shipping Varies

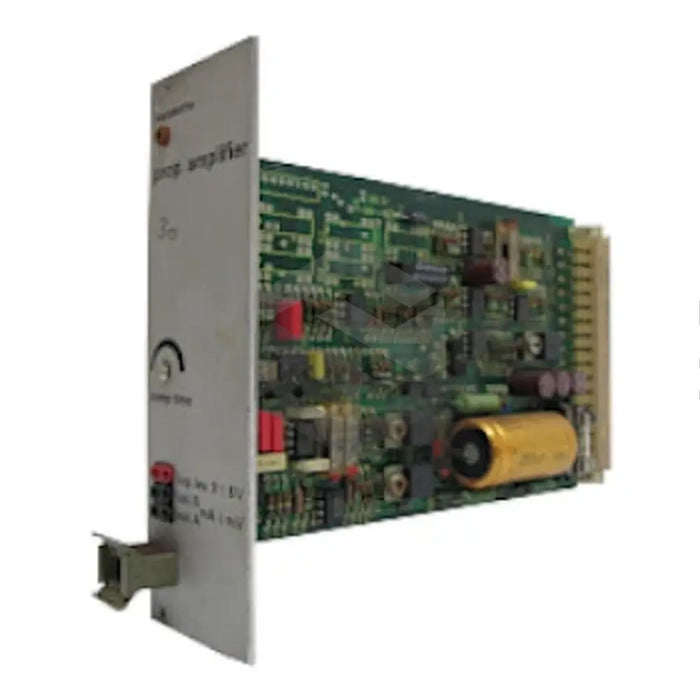

The VT 3000 S 20, a product of the Bosch Rexroth Indramat, is an efficient and cost-effective amplifier card. This model necessitates varying divisions of space on different sides; one division equates to approximately 5.08 mm. A built-in ramp generator forms a significant component of the VT amplifier card, overseeing acceleration and deceleration rates that can be set at 1 or 5 seconds. The card has an inherent coil resistance of 19.5 ohms and a voltage stabilizer, facilitating a reliable operational voltage. Furthermore, the VT 3000 S 20 features polarity protection for voltage supply, two pulsed current output stages, four LEDs on the faceplate for easy relay access, and a step function generator. Weighing 0.33 kilograms, it requires a 24-volt power supply and is suitable for piloting WRZ series directional valves. The card operates proportional pressure valves directly, with the maximum strength of the input signal controlled by potentiometers on its four command valves. It has a PWM output, providing a low hysteresis and a wide range of ambient temperatures.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Model Name: VT 3000 S 20
  • Face Plate Side Space: 1 Division
  • Conductor Side Space: 7 Divisions
  • One Division Equivalent: 5.08 mm
  • Built-in Ramp Generator: Yes
  • Acceleration and Deceleration Rate Adjustability: 1 or 5 seconds
  • Coil Resistance: 19.5 ohms
  • Voltage Stabilizer: Yes
  • Step Function Generator: Yes
  • Polarity Protection: Yes
  • Pulsed Current Output Stages: 2
  • Ramp Time Options: 1-second or 5-second
  • Suitable For: Pilot-operated WRZ series directional valves
  • Weight: 0.33 kilograms
  • Power Requirement: 24 volts
  • Number of LEDs: 4
  • Input Control Voltage: +9V
  • Product Function: Operates proportional pressure valves with direct control
  • Potentiometers on Card: Adjustable and governs input signal's max strength
  • Pulse Width Modulation Output: Yes.
