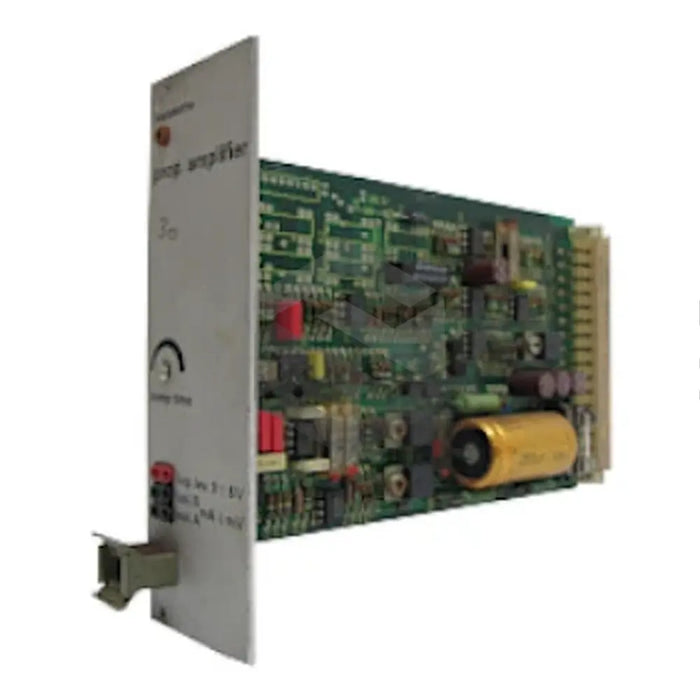

series image of VT 3000 S 34-R1

VT 3000 S 34-R1

by Bosch Rexroth Indramat
Request a quote
The Bosch Rexroth Indramat VT 3000 S 34-R1 is an analog amplifier designed for valve control. Key features include a ramp generator with adjustable ramp time ranging from 0.03 to 1 second, and Euro card design that fits Euro magazines and card holders. Care must be taken with this product; radio transmitters should not be used within 3 feet and power should be switched off before connecting or disconnecting. All control voltage wires must be shielded and solenoid wires should be kept away from power wires. The dimensions of the front panel are 128.4 x 40.3 mm, while the PCB measures 100 x 186 mm. The product weighs 130 grams. It has a working temperature range of 0 to 50 degrees Celsius and a storage range of -25 to 85 degrees Celsius. The product includes a 2.5 Amp protective fuse, and consumes a maximum of 50 VA power, with a peak current draw of 1 Amp.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Name: VT 3000 S 34-R1
  • Product Type: Analog Amplifier
  • Design: 32-pin plug-in Euro card
  • Applications: Valve control
  • Ramp Time: 0.03 to 1 second
  • Installation: In Euro magazines or card holders
  • Additional Feature: Ramp generator
  • Measurement Instrument Requirement: High impedance meter
  • Shielding Requirement: All control voltage wires should be shielded
  • Front Panel Measurement: 128.4 x 40.3 millimeters
  • PCB Measurement: 100 x 186 millimeters
  • Soldering Side Width: 5.08 millimeters
  • Weight: 130 grams
  • Working Temperature: 0 to 50 degrees Celsius
  • Storage Temperature: -25 to 85 degrees Celsius
  • Command Values 1-4 Voltage Range: ± 9 Volts
  • Command Value 5 Voltage Range: ±6 Volts
  • Command Value 6 Voltage Range (differential input): 0 to ±10 Volts
  • Protective Fuse Rating: 2.5 Amps
  • Maximum Power Consumption: 50 VA
  • Peak Current Draw: 1 Amp.
