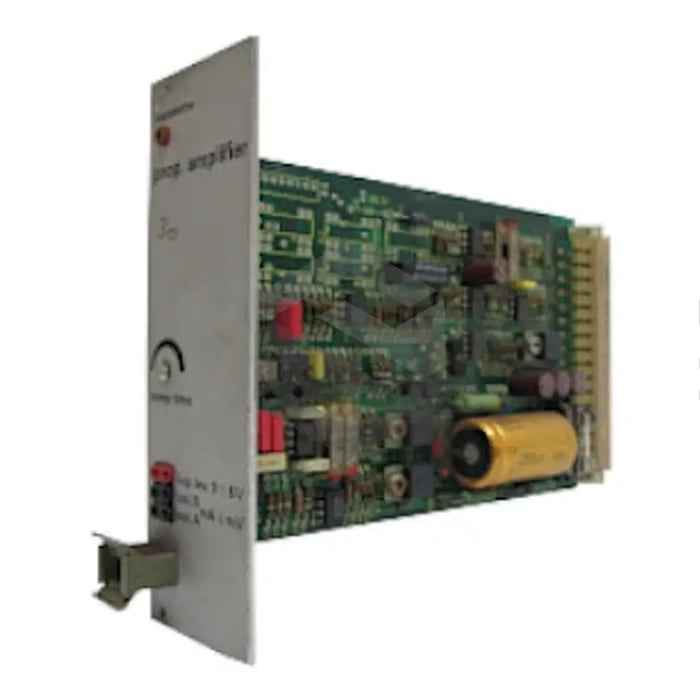

P image of VT 3000 S 3X

VT 3000 S 3X

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch Rexroth Indramat's VT 3000 S 3X is an electronic analog amplifier used for managing pilot operated proportional directional valves, ranging from type WRZ to series 6X valves without electric position feedback. By proportionally converting input voltage into output current, this unit powers proportional solenoids. It possesses a 24VDC +60% -5% operating voltage, a 32-pin form D and DIN-mounted terminal strip, and a factory-designated ramp time adjustable through an external bridge or relay. The unit is 100 x 160mm in size and features a Euro card plug-in design. The unit is equipped with four adjustable command values, which are indicated by the illumination of H1 to H4 LEDs. The analog amplifier operates within a temperature range of 0° to 50°C. Switching off the amplifier before plugging or unplugging the amplifier card is essential for its safety. The unit features an H11 LED which lights up when operational, and a relay with 2150 Ohms coil resistance, 2.4V return voltage, and 16.8V threshold voltage.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product

VT 3000 S 3X

Type

Electronic Analog Amplifier

Use

Controlling pilot operated proportional directional valves

Valves Range

Type WRZ to component series 6X valves without any electrical position feedback

Output Biasing Current

20mA +/-25%

Factory Assigned Ramp Time

30ms to 1s to 5s

Operating Voltage

24VDC +60% -5%

Terminal Strip

32-pin with form D and DIN mount

Design

Euro card plug-in

Size

100 x 160mm

Features

Adjustable command values using potentiometers

Operating Temperature

0° to 50°C

Voltage Regulation

+/-9V controlled voltage of the power supply or by using an external command value potentiometer

Relays Coil Resistance

2150 Ohms

Return Voltage

2.4V

Threshold Voltage

16.8V
