VT 3002-1-20-32F

Original price $1,117.50 - Original price $1,117.50
Original price
$1,117.50
$1,117.50 - $1,117.50
Current price $1,117.50
In Stock, Ships Today
Request a quote

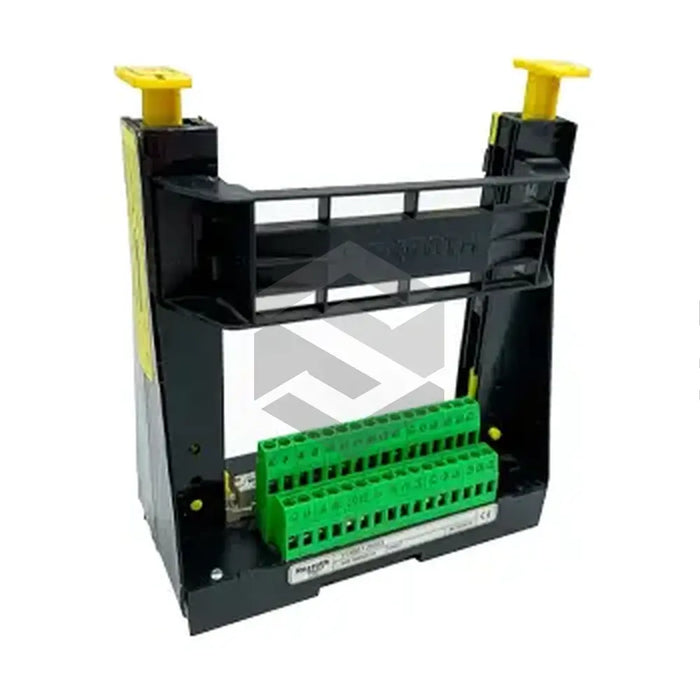

The Rexroth Bosch Group's VT 3002-1-20-32F model is a sturdy, open-type electronic analog amplifier card holder. Designed for analog amplifier cards, this Eurocard format unit can be connected to a hat rail or DIN rail via a screw or snap-on mechanism. It features vertical mount orientation on a hat rail with an additional adapter and accommodates a 32-pin Form F socket connector. The holder can handle a 4A current and a terminal voltage rating of up to 48VAC/VDC. It includes an even-numbered pinout with b and z rows for connection. The item has snap-on or removable web connections for cable attachments and operates between -20° and +70°C. The holder, measuring 63mm in width and 140mm in length and weighing 0.5KG, has two pushbuttons enabling safe amplifier board insertion or removal. It is primarily used with the VT 3000 range of analog amplifiers within control or switching cabinets.
30 Day Warranty
Technical Specifications
  • Product Manufacturer: Rexroth Bosch Group
  • Product Type: Electronic Analog Amplifier Card Holder
  • Format Type: Single Eurocard
  • Mounting Options: Hat rail or DIN rail (screwing or snap-on)
  • Orientation: Vertical (with additional adapter)
  • Connector Type: Form F 32-pin socket
  • Current Capacity: 4A
  • Terminal Voltage Rating: Maximum 48VAC/VDC
  • Pinout: Even-numbered (rows b and z)
  • Operating Temperature Range: -20° to +70°C
  • Breadth: 63mm
  • Length: 140mm
  • Releasing Mechanism: Pushbuttons on either side
  • Weight: 0.5 KG
  • Compatibility: VT 3000 range of analog amplifiers
  • Location Usage: Switching or control cabinets
