VT 3002-1-2X-32D

Original price $633.00 - Original price $633.00
Original price
$633.00
$633.00 - $633.00
Current price $633.00
In Stock, Ships 1 - 2 Days
Request a quote

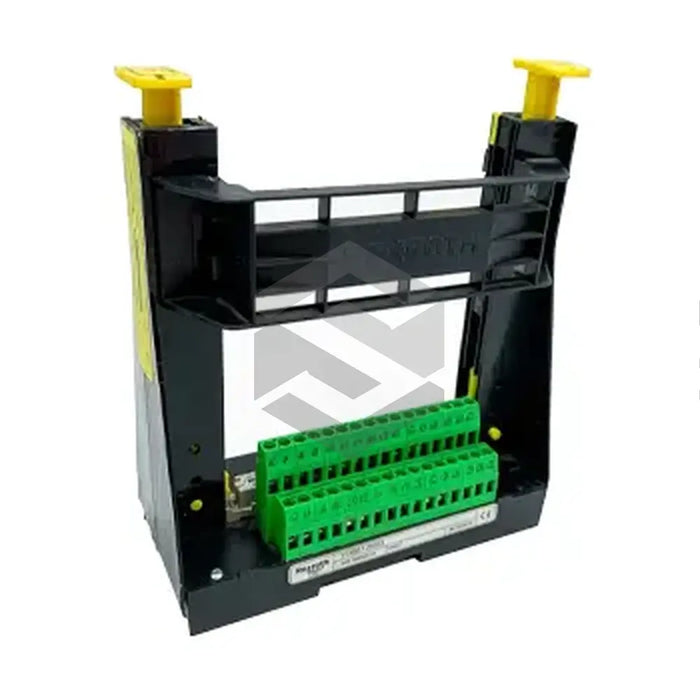

The Bosch Rexroth Indramat VT 3002-1-2X-32D is a robust Euro card holder offering a firm platform for easy installation of field connections. It supports both a single card and double Euro-format with weights of 0.5 Kg and 0.8 Kg respectively. Designed to operate efficiently within an ambient temperature range of -20 to +70°C, the product can be integrated into various applications such as electrical control cabinets. This 32-pin card holder can safely handle a terminal voltage of up to 48 VAC/DC. Easily mountable via screws or snaps, the VT 3002-1-2X-32D provides the user with convenient lock-release mechanisms. Cards can be effortlessly inserted into the slot and subsequently removed through the actuation of the locking lever. Furthermore, the unit's connection web, placed between two card guide rails, is easily removable and reattachable.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Euro Card Holder
  • Part Number: VT 3002-1-2X-32D
  • Weight (Single Format): 0.5 Kg
  • Weight (Double Format): 0.8 Kg
  • Ambient Temperature Range: -20 to +70°C
  • Application: Electrical Control Cabinets
  • Connection Type: 32-Pin Socket Connector
  • Max Terminal Voltage: 48 VAC/DC
  • Mounting Method: Screwed or Snapped
  • Orientation: Vertical
  • Base Type: Rugged
  • Locking Mechanism: Lever Actuation
  • Terminal Hold: Terminal Screws
  • Card Insertion Method: Push down levers
  • Unlocking Mechanism: Locking lever actuation
  • Connection Web: Removable and snap-able
