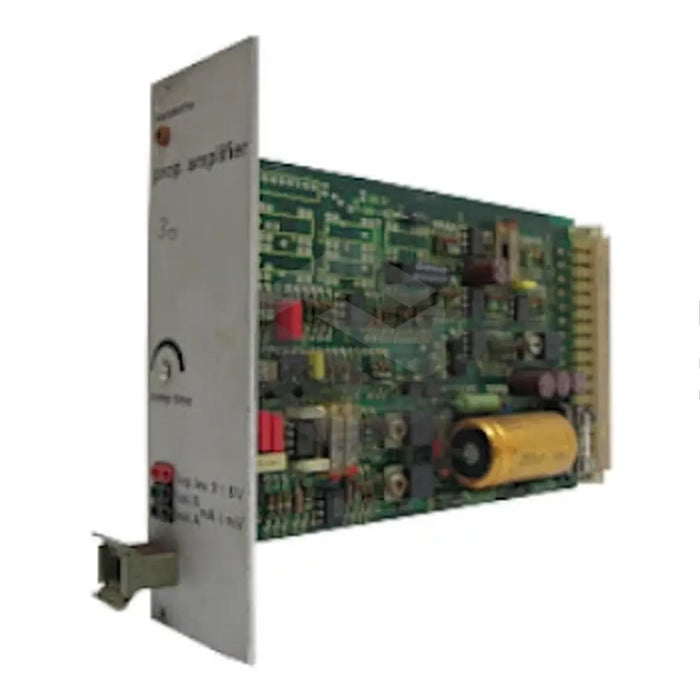

S image of VT 3002-1-2X-32F

VT 3002-1-2X-32F

by Bosch Rexroth Indramat
$517.65 - $1,170.48
$517.65
$517.65 - $1,170.48
$517.65

Available, Shipping Varies

The VT 3002-1-2X-32F is a card holder for electronics cards of the VT 3002 series, made by Bosch Rexroth Indramat. This holder ensures ease of card mounting and wiring, with connections made via screw terminals. It showcases a 32-pin socket connector for external linkages and can house a single Euro-format electronics card. Installation of cards involves deploying yellow operating levers; for cabling installation, the connection web between the guide rails is made either removable or capable of snapping in. The device can be snapped or screwed to a hat rail but only in a vertical orientation. Measuring 140mm in height, 63mm in width, and 220mm in depth, it weighs approximately 0.5 kilograms and can operate in ambient temperatures of -20 to 70 Celsius. It handles a maximum terminal voltage of 48 volts, carries a peak current of 4 Amps, and has connection cross-section of 4mm2.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Model

VT 3002-1-2X-32F

Manufacturer

Bosch Rexroth Indramat

Series

VT 3002

Product Type

Electronics Card Holder

Connector Type

32-pin socket connector Form F

Installation

Installable on hat rail in vertical orientation

Operating Mechanism

Yellow operating levers

Dimensions

140mm height x 63mm width x 220mm depth

Weight

Approximately 0.5 kilograms

Operating Temperature

-20 to 70 degrees Celsius

Maximum Terminal Voltage

48 Volts

Peak Current Carrying Capacity

4 Amps

Terminal Strip Cross Section

4 mm2

Terminal Strip Pinout

Even-numbered, rows b/z

Handling and Safety Recommendations

Must read, understand and implement product documentation instructions.
