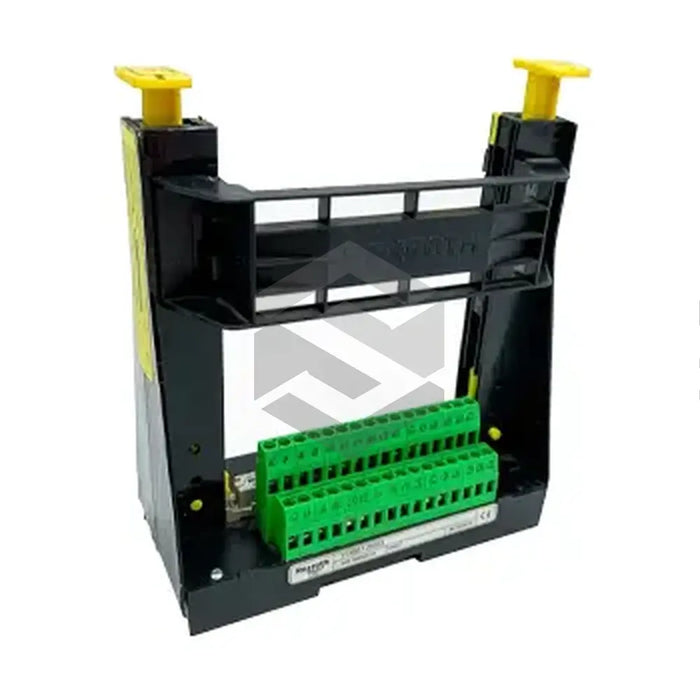

P image of VT 3002-1-2X-48F

VT 3002-1-2X-48F

by Bosch Rexroth Indramat
$577.45 - $845.76
$845.76
$577.45 - $845.76
$845.76

Available, Shipping Varies

The Bosch VT 3002-1-2X-48F is a card holder specifically designed to mount industrial electronics cards securely in control cabinets or similar commercial enclosures. Its functionality enables easy installation, removal, and wiring of the cards, with clearly marked, evenly numbered external connections via a 48-pin form F socket connector. Its simple system of push-levers makes card insertion and extraction straightforward. The device has potential for flexible mounting options with screw or rail fittings, made possible with an additional adapter provided. The VT 3002-1-2X-48F has a sturdy base and is compliant with VDE 0110C's terminal maximum voltage of 48 Volts DC and a current capacity of 4 Amps. Weighing at 0.5 kilograms, its dimensions are 140 x 63 x 220 millimeters. Only technically competent personnel should operate this device to prevent equipment damage.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product

VT 3002-1-2X-48F Card Holder

Manufacturer

Bosch

Application

Mounting of industrial electronic cards

Installation Instruction

Push down on yellow operating levers and insert card completely

Card Removal

Unlock and withdraw card after repeated actuation of the locking lever

External Connections

48-pin socket connector (form F)

Terminal Strip Pin-out

Even-numbered, rows d/b/z

Mounting Options

Fixed with screws or snapped to a hat rail

Screw Hole Diameter

4.2 millimeters

Additional Mounting Option

With adapter provided, mounting on hat rail possible in vertical position

Base

Rugged

Terminal Maximum Voltage

48 Volts DC

Current Carrying Capacity

4 Amps

Shipping Weight

0.5 kilograms

Dimensions

140 x 63 x 220 millimeters

Handling Guidelines

Should be managed by trained and qualified technical personnel only.
