VT 3013-36

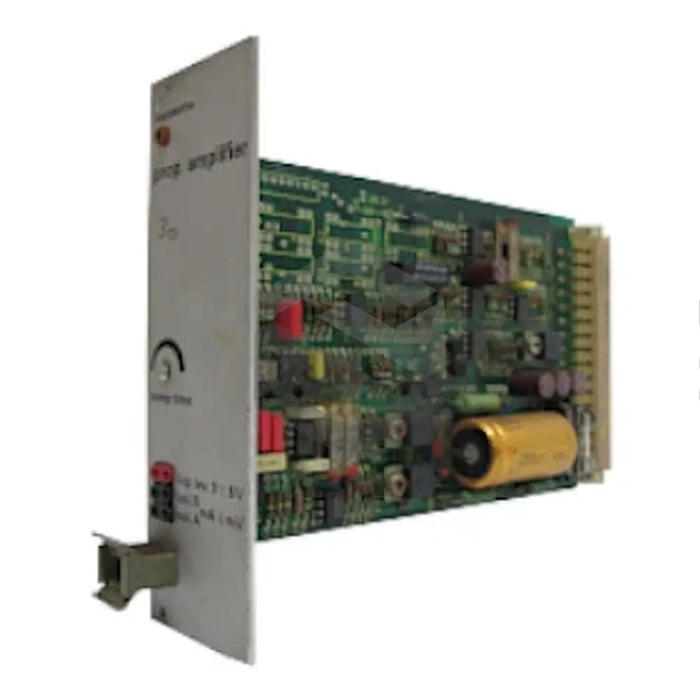

The Bosch Rexroth Indramat VT 3013-36 amplifier is a precision device within the VT 3000 Analog Amplifiers series, engineered for industrial automation applications. It operates on a 24 VDC ±10% power supply and delivers a maximum output current of 800 mA. With a pulse frequency range of 160–180 Hz, this module ensures accurate and responsive control of servo drives and motors in complex machinery.
Equipped with an input control voltage of ±9 V and an input signal range of ±10 V, the VT 3013-36 provides versatile signal handling suited to varied control system architectures. The amplifier maintains a minimum input load of ≥500 Ω and can drive a maximum output load of 19.5 Ω, while supplying a bias output current of 20 mA. Rated power consumption is 30 W, and test points BU1, BU2, and BU3 facilitate in-circuit diagnostics: BU1 offers a command output level of 0–6 V, and BU2/BU3 measurements adhere to a scale of 1 mV = 1 mA. Its temperature drift of 0.5% per Imax/K guarantees stability under fluctuating environmental conditions.
Compact yet robust, the VT 3013-36 weighs just 0.33 lb (0.15 kg) and occupies 8 faceplate divisions (1 division = 5.08 mm), making it suitable for space-constrained control cabinets. Integrated short-circuit and thermal overload protection enhances device safety and longevity. By handling ±10 V input signals and offering precise test points, it simplifies calibration and maintenance. This amplifier delivers reliable, efficient power management and protection, ensuring consistent performance and durability in demanding industrial automation settings.
