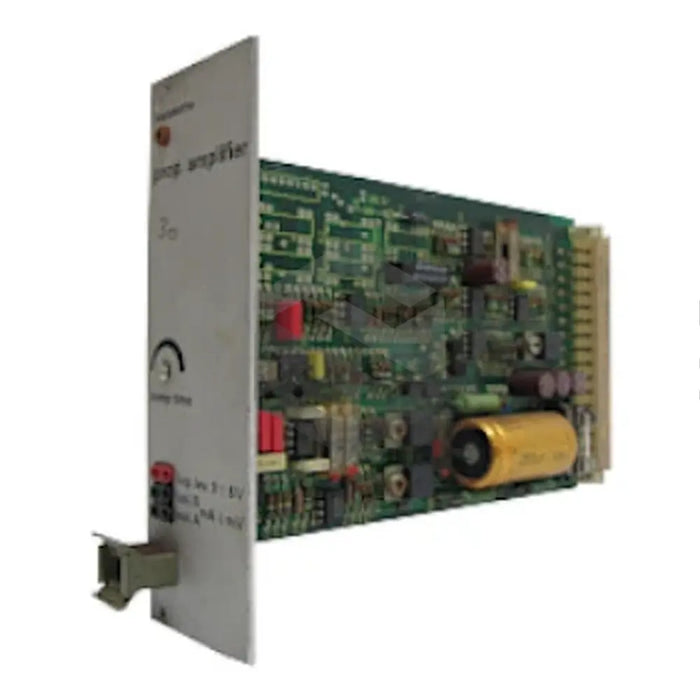

VT 3015 S10
The VT 3015 S10 by Bosch Rexroth Indramat is a robust solution in the VT 3000 Analog Amplifiers lineup, engineered for demanding industrial automation tasks. This amplifier operates across a voltage range of 22 VDC to 39 VDC with a nominal operational voltage of 24 VDC, ensuring precise control even under fluctuating supply conditions. With a power consumption of 50 VA and a lightweight weight of 0.29 kg, the VT 3015 S10 delivers high performance without imposing excessive load on system power budgets. Its compact Card format of Eurocard 100 x 160 mm (DIN 41 494) allows for seamless integration into standard control cabinets. Designed by Bosch Rexroth Indramat, the amplifier embodies industrial reliability and precision in a single, streamlined package.
In terms of technical capabilities, the VT 3015 S10 provides a regulated output of ±15 V with 100 mA load, enabling stable auxiliary power for sensors and control circuits. The amplifier supports a pulse frequency range of 170 Hz to 220 Hz, allowing for fine-grained modulation of analog signals in motion control and process regulation. It maintains an idle current of just 30 mA, minimizing standby losses and improving overall system efficiency. Under load, it delivers a maximum output current between 0.8 A and 1.5 A, making it suitable for driving a variety of actuators and control valves. Electrical connectivity is provided via a rugged 32-pin DIN 41 612, D-shape form connector, guaranteeing secure signal transmission in industrial environments.
Operational features of the VT 3015 S10 emphasize durability and environmental tolerance. The amplifier operates reliably across an operating temperature span of 0 °C to +50 °C, while its storage temperature range extends from −25 °C to +85 °C, ensuring resilience during transport or downtime. The low overall weight of 0.29 kg simplifies handling and reduces mechanical stress on rack mounts. With a power consumption profile optimized at 50 VA, the device minimizes heat generation, enhancing cabinet thermal management and reducing cooling requirements. This balance of performance and efficiency allows uninterrupted operation in continuous, high-duty-cycle applications.
Integration of the VT 3015 S10 into existing systems is straightforward thanks to its standard Card format and DIN rack compatibility. The robust 32-pin DIN 41 612 interface ensures reliable signal and power connections, while the compact Eurocard 100 x 160 mm (DIN 41 494) dimensions fit seamlessly into modular control architectures. Ideal for applications in conveyor systems, packaging machinery, and motion control networks, this amplifier delivers precise analog signal conditioning and power regulation. Its professional-grade specifications and proven Bosch Rexroth Indramat heritage make the VT 3015 S10 a preferred choice for engineers seeking dependable, high-performance analog amplification in industrial automation.
