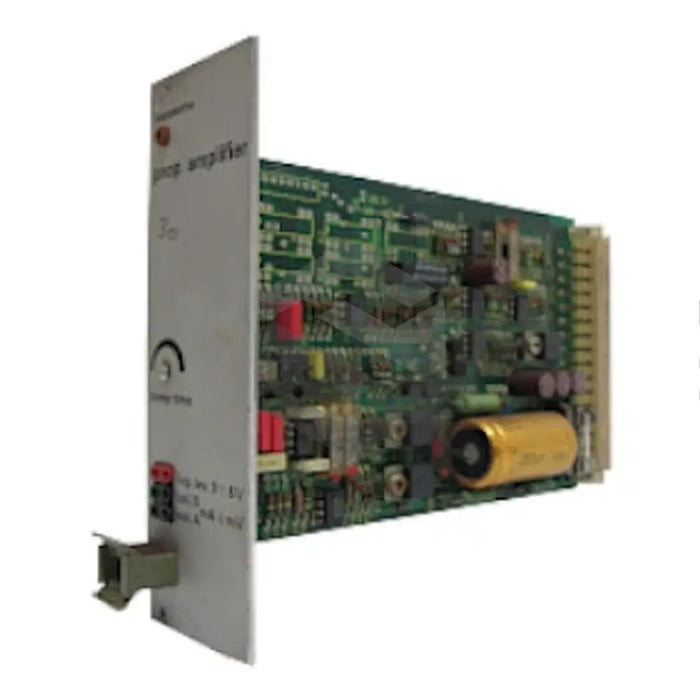

VT 3018 S38

Original price $0.00 - Original price $0.00
Original price
Request a Quote
$0.00 - $0.00
Current price Request a Quote

Request a quote

Add a Message

The Bosch Rexroth Indramat VT 3018 S38 from the VT 3000 Analog Amplifiers series is a precision industrial amplifier operating on a 24 VDC ±10% power supply with input control voltages of ±9 V. It delivers a min output bias current of 20 mA up to a max output current of 800 mA into loads from ≥500 Ω to ≤19.5 Ω, with a pulse frequency of 160–180 Hz and a temperature drift of 0.5%/K. Certified to UL 508 and CE, weighing 0.33 lb, width 7.28 in, it withstands up to 5 g vibration and features plug-in terminals and test points BU2 (20–800 mA solenoid B) and BU3 (solenoid A) for efficient installation.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Certifications


UL 508, CE certified

Connection Interface


Plug-in terminals

Height


4.2 in (107 mm)

Input Control Voltage


±9 V

Max Output Current


800 mA

Max Output Load Resistance


19.5 Ω

Min Input Load Resistance


≥500 Ω

Min Output Bias Current


20 mA

Power Consumption


30 W

Power Supply Voltage


24 VDC ±10%

Pulse Frequency


160–180 Hz

Temperature Drift


0.5%/K (of Imax)

Test Point BU2


20–800 mA output for solenoid B

Test Point BU3


Output signal for solenoid A

Vibration Resistance


Up to 5 g, 10–150 Hz

Weight


0.33 lb (0.15 kg)

Width


7.28 in (185 mm)
