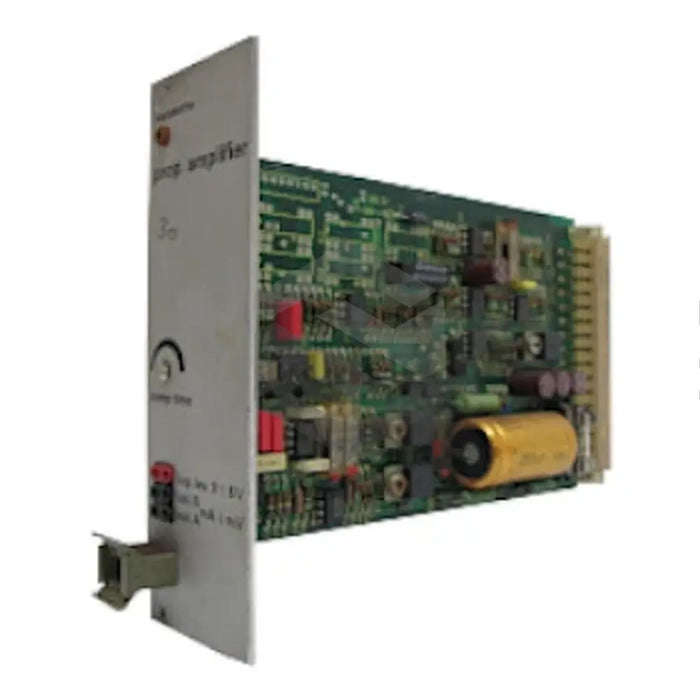

VT 3024-36a
The VT 3024-36a analog amplifier, part of the VT 3000 Analog Amplifiers series from Bosch Rexroth Indramat, delivers precise solenoid control in demanding industrial settings. This module operates with a Power Supply Voltage of 24 VDC B110% and requires only 30 W of Power Requirements for efficient performance. It features a Pulse Frequency range of 160 to 180 Hz to optimize switching speed and minimize hysteresis losses in solenoid actuators. The amplifier's compact form factor, weighing just 0.33 lb (0.15 kg), simplifies panel integration and reduces structural load. A 2.5 Ampere fuse rating (5 mm x 20 mm) is included for built-in overcurrent protection, ensuring safe operation under fault conditions.
Performance is further enhanced by an Input Control Voltage of B19 V, which allows fine modulation of the output current for accurate actuation. The device provides a Maximum Output Current of 800 mA while supporting a Maximum Output Load of 19.5 94 without exceeding its current capacity. For sensitive signal sources, a Minimum Input Load of B9500 94 prevents undue loading of control circuits, and a Minimum Output (bias) Current of 20 mA keeps solenoids primed for instantaneous response. Thermal stability is maintained by a Temperature Drift of 0.5% (from Imax)/K, guaranteeing consistent performance across varying ambient conditions.
Reliability is assured through comprehensive diagnostic access via Test Point Bu2 and Test Point Bu3, which deliver real-time output signals (20-800 mA) for solenoid A and B respectively. The amplifier's robust design meets the exacting requirements of industrial automation, including precise temperature compensation and overcurrent safeguards. Its lightweight construction and standard mounting footprint facilitate seamless integration into existing control cabinets and rack systems. Ideal applications include valve actuation, fluid control, and high-precision electro-mechanical processes, where consistent solenoid performance and minimal downtime are critical.
