VT 3024S35

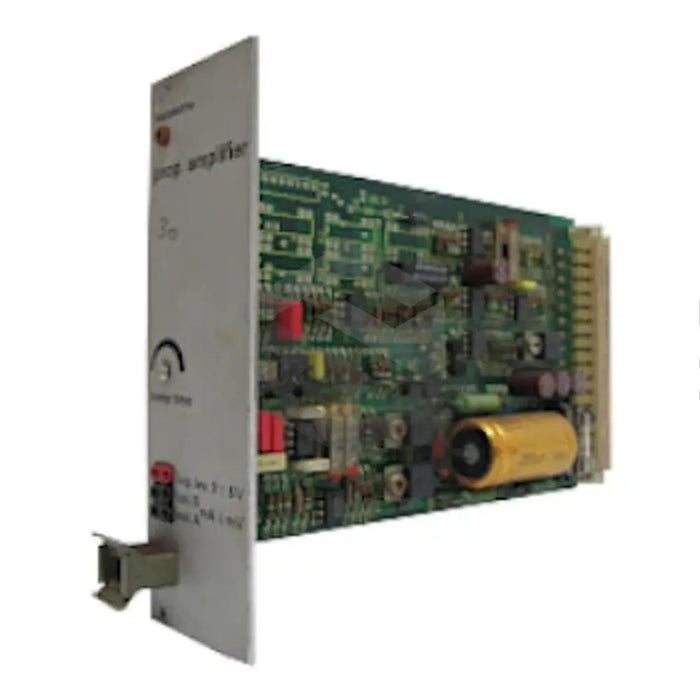

The Bosch Rexroth Indramat VT 3024S35 analog amplifier, part of the VT 3000 Analog Amplifiers series, delivers precision signal conditioning and power amplification for industrial automation applications. Designed by Bosch Rexroth Indramat, this compact unit supports a Power supply voltage of 24 VDC ±10% and features a protective Fuse rating of 2.5 A with a Fuse dimension of 5 mm × 20 mm. It provides a Maximum output current of 800 mA to drive control valves, solenoids, and small actuators with stability and accuracy. The VT 3024S35 excels in continuous operation with a Power requirement of 30 W, ensuring consistent performance in demanding environments. By integrating robust construction and precise control, this amplifier enhances signal fidelity across diverse industrial systems.
Detailed technical specifications define the VT 3024S35's capabilities. The device accepts an Input control voltage of ±19 V and delivers output loads up to Maximum output load of 19.5 Ω while maintaining compatibility with a Minimum input load of ≥500 Ω. Minimum output bias current is specified at 20 mA, ensuring reliable startup and stable signal baselines. Operating within a Pulse frequency range of 160 to 180 Hz, the amplifier minimizes response lag and delivers smooth current transitions. Thermal stability is achieved with a Temperature drift of 0.5%/K (from Imax), preserving accuracy under varying ambient conditions. Integrated test points BU2 and BU3 provide solenoid current monitoring for channels B and A, respectively, covering ranges from 20 to 800 mA on each line. The entire module weighs just 0.33 lb (0.15 kg), making it a space-efficient solution for compact control cabinets.
Operational features of the VT 3024S35 emphasize reliability, safety, and performance. The built-in fuse protects against overloads and short circuits, while the precise bias current ensures minimal overshoot or oscillation during switching events. Pulse-width modulated output achieves efficient current delivery, reducing heat generation and extending service life. The amplifier's thermal drift rating guarantees stable operation across industrial temperature variations, and the integrated test points facilitate on-site diagnostics without system disassembly. Lightweight construction and minimal footprint streamline installation and maintenance, enabling rapid deployment in retrofit or new-build automation systems.
System integration is seamless with standard analog control interfaces, supporting direct connection to PLC analog output modules, D/A converters, or dedicated motion controllers. Robust mechanical design and compliance with industrial safety standards make the VT 3024S35 ideal for hydraulic valve control, electro-pneumatic actuation, packaging machinery, and mobile equipment. Its precise current regulation enhances valve responsiveness and process repeatability, reducing cycle times and improving throughput. The Bosch Rexroth Indramat VT 3024S35 delivers a reliable, high-performance solution tailored to the needs of modern factory automation and motion control applications.
