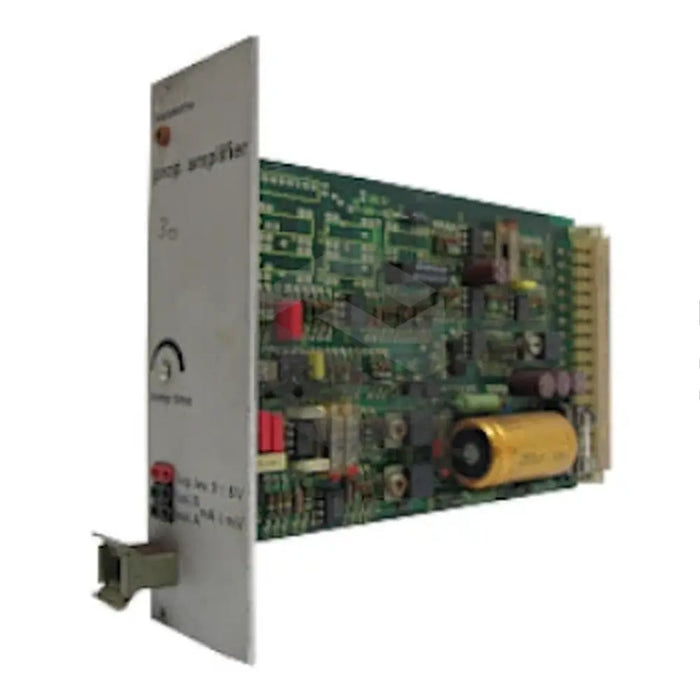

VT 3025-S-1X
The Bosch Rexroth Indramat VT 3025-S-1X analog amplifier from the VT 3000 Analog Amplifiers series by Bosch Rexroth Indramat is engineered to deliver high-performance signal conditioning in industrial automation environments. This compact module operates with a Power Supply Voltage of 24 VDC B110% and draws 30 W under full load, ensuring stable power delivery. Its Input Control Voltage of B119 V accommodates a broad range of control signals, while the Maximum Output Current of 800 mA sustains precise actuator drive. The amplifier processes pulse signals between 160 to 180 Hz to maintain accurate feedback loops in motion control systems. Weighing just 0.33 lb (0.15 kg), the VT 3025-S-1X offers an excellent power-to-weight ratio for space-constrained panels.
Performance characteristics are optimized through robust output and load management. The unit supports a Maximum Output Load of R 19.5 A9 and requires a Minimum Input Load of B9500 A9 for correct operation, avoiding signal distortion under varying impedance conditions. A Minimum Output (bias) Current of 20 mA ensures reliable baseline drive for connected devices. Built-in overcurrent protection is provided by a 2.5 A Fuse Rating, safeguarding downstream components against faults. The amplifier delivers fast response to dynamic control changes within its 160 to 180 Hz pulse frequency band, guaranteeing consistent system throughput. Its low overall weight simplifies installation and minimizes mechanical stress on DIN-rail or panel-mounted arrangements.
Engineered for long-term durability, the VT 3025-S-1X features rugged construction that resists electrical disturbances and voltage fluctuations across industrial networks. Its compact form factor and standardized mounting make integration seamless with existing hydraulic control systems, conveyor drive panels, and precision motion control architectures. Maintenance is streamlined by the straightforward fuse access and clear labeling of Input Control Voltage, Power Requirements, and output terminals, reducing downtime during field service. Whether deployed in factory automation, machine tools, or process control, this amplifier provides dependable signal amplification and distribution. The VT 3025-S-1X stands as a versatile component for engineers and automation professionals seeking a lightweight, high-efficiency solution for analog signal management.
