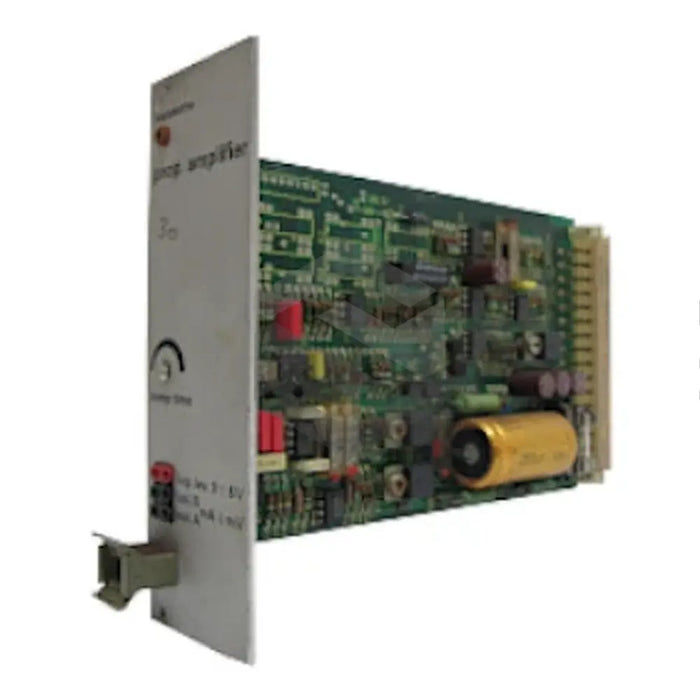

The Bosch Rexroth Indramat VT 3033-11B is a compact analog amplifier from the VT 3000 Analog Amplifiers series weighing 0.15 kg. It requires a 24 VDC ±10% supply and consumes 30 W, supports pulse frequencies of 160–180 Hz, delivers up to 800 mA output current (max load 19.5 Ω), maintains a minimum input impedance of 500 Ω, and features a temperature drift of 0.5%/K for precision in industrial automation applications.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Card Face Divisions (component side)
7 divisions
Card Face Divisions (conductor side)
1 division
Division Size
0.200 in (5.08 mm)
Face Plate Divisions
8 divisions
Fuse Rating
2.5 A
Fuse Size
5 mm × 20 mm
Input Control Voltage
±9 V
Max Output Current
800 mA
Max Output Load Resistance
19.5 Ω
Min Input Load Resistance
≥500 Ω
Min Output Bias Current
20 mA
Power Consumption
30 W
Pulse Frequency
160–180 Hz
Supply Voltage
24 VDC ±10%
Temperature Drift
0.5%/K (from Imax)
Test Point BU2
Output B: 20–800 mA
Test Point BU3
Output A: 20–800 mA
Weight
0.33 lb (0.15 kg)
Wiring Diagrams
Terminal and wiring diagrams for I/O signals
