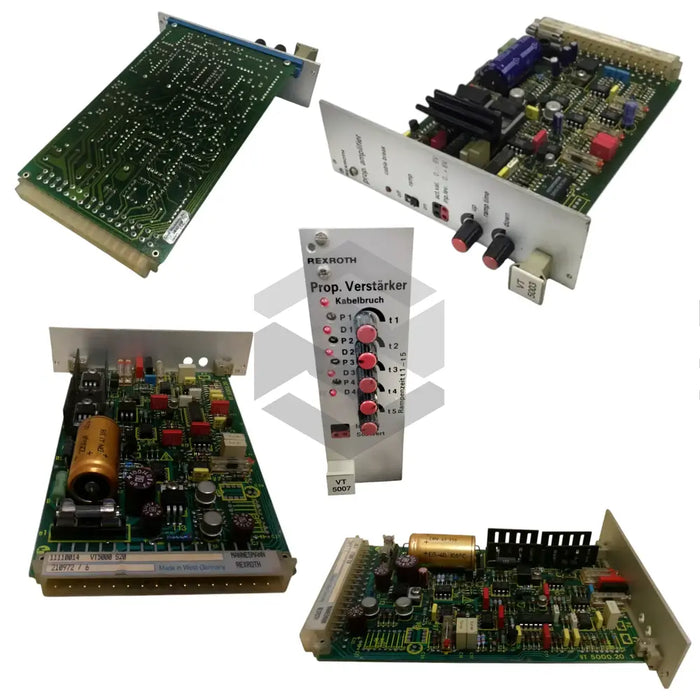

The Bosch Rexroth Indramat VT 5001 S23 from the VT-5000 IO Cards series operates at 24 VDC (+40%/-5%), supports ramp times 30 ms–5 s (±20%), and a clock frequency up to 1.5 kHz. It delivers ±19 V (±1%) output and provides 0–7.6 V command and 0–6.6 V actual measuring sockets. Dimensions are 100×160 mm and weight ~0.15 kg.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Card Dimensions
100 x 160 mm (Euro-card, DIN 41494)
Clock Frequency
up to 1.5 kHz
Connector Type
32‑pin male, DIN 41612 Form D
Driver Voltage Amplitude
5 V per output
Front Panel Component-side Width
7 TE
Front Panel Height
3 HE (128.4 mm)
Front Panel Solder-side Width
1 TE (5.08 mm)
Maximum Load Current
30 mA
Measuring Socket Actual (x)
0 to 6.6 V (Ri=100 Ω)
Measuring Socket Command (w)
0 to 7.6 V (Ri=100 Ω)
Operating Temperature Range
0 to 50 °C
Operating Voltage
24 VDC (+40%/-5%)
Oscillator Frequency
2.5 kHz ±10%
Ramp Time
30 ms to 5 s (±20%)
Regulated Voltage Output
±9 V ±1% (up to ±25 mA)
Solenoid Variant 1 Current/Resistance
Imax 1.8 A (±20%), R20=5.4 Ω
Solenoid Variant 2 Current/Resistance
Imax 2.2 A (±20%), R20=10 Ω
