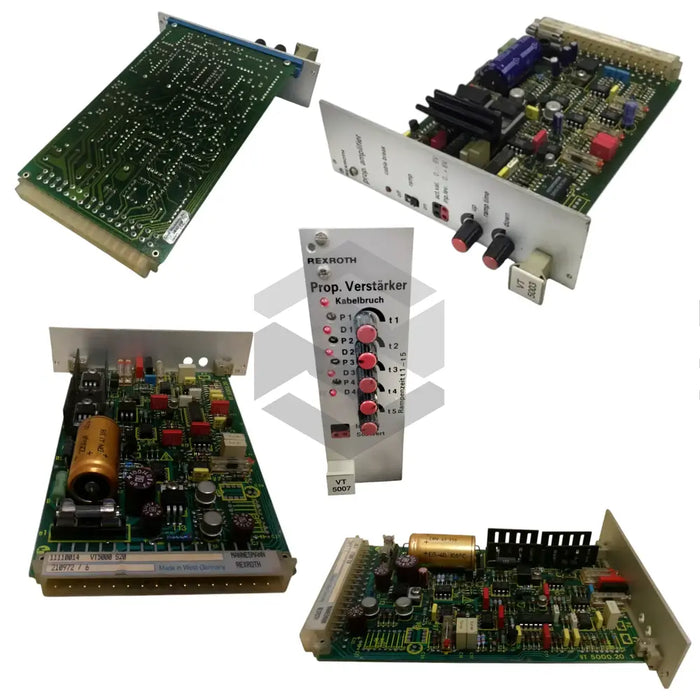

The VT 5002 S21 from Bosch Rexroth Indramat features a regulated auxiliary voltage of ±9 V ±1% and operates at 24 VDC ±40%. Part of the VT-5000 IO Cards series, it supports self-clocking up to 1.5 kHz and an oscillator frequency of 2.5 kHz ±10%.
It draws less than 2 A of current, consumes under 50 VA of power, and includes a 2.5 A time-delay fuse for protection. The card measures 100 x 160 mm, connects via a 32-pin DIN 41612 form D connector, and delivers up to 30 mA per output.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Aux regulated voltage
±9 V ±1% (±25 mA)
Card dimensions
100 x 160 mm (Euro-card, DIN 41494)
Clock frequency
Self-clocking up to 1.5 kHz
Connector type
32-pin male, DIN 41612 form D
Current consumption
<2 A
Front panel height
3 HE (128.4 mm)
Front panel width (component side)
7 TE
Front panel width (solder side)
1 TE
Fuse rating
2.5 A time-delay
Load capability
30 mA per output max
Measuring socket actual value
0–6.6 V (Ri=100 Ω, –100% to +100%)
Measuring socket command value
0–7.6 V (Ri=100 Ω, –100% to +100%)
Operating voltage
24 VDC ±40% (22–35 V)
Oscillator frequency
2.5 kHz ±10%
Power consumption
<50 VA
Solenoid output VT5005/07
Imax 1.8 A ±20%, R20=5.4 Ω
Solenoid output VT5006/08
Imax 2.2 A ±20%, R20=10 Ω
Voltage amplitude
5 V per output
