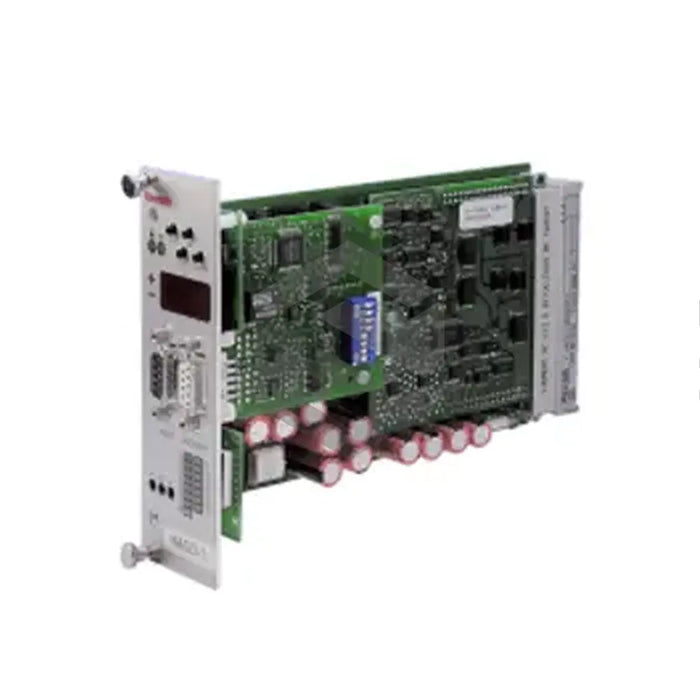

product image of a VT-HACD-1-12-V0-1-P-0

VT-HACD-1-12-V0-1-P-0

by Bosch Rexroth Indramat
Request a quote
The VT-HACD-1-12-V0-1-P-0, produced by Bosch Rexroth Indramat, is a 12 component series Digital Axis Controller. Designed for closed-loop control, it boasts 32 parameter blocks for controlling speeds and values. Apart from providing a ramp function, the controller can standardize, generate, and link signals. It also includes state feedback and a PIDT1 microcontroller. The device provides a PROFIBUS DPV0 bus connection in Motorola format, an RS232 serial interface, and a +/-10V reference voltage output. With a straightforward configuration process, it includes graphical representation and recording of eight process variables, and compatibility with the VT 10812-2X/64G connection adapter. It operates on 24VDC power, weighs 0.2kg, and does not include a valve output stage.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: VT-HACD-1-12-V0-1-P-0
  • Product Type: Digital Axis Controller
  • Components Series: 12
  • Control Function: Substitutional closed-loop control with 32 blocks of controller parameters, speeds, and command values
  • Ramp Function: Parameterizable
  • Roles: Command value card, Controller card with optional state feedback and a PIDT1 microcontroller
  • Valve Output Stage: Not available
  • Bus Connection: PROFIBUS DPV0 bus connection in Motorola format with an RS232 serial interface
  • Reference Voltage Output: +/-10V
  • Memory Used: 64MB on personal computer
  • Front Display: Available with four keys
  • Process Variables Representation: Graphical representation and recording of eight process variables
  • Card Compatibility: VT 10812-2X/64G connection adapter
  • Configuration Mode: Mode 1 (non-bus-enabled) and Mode 3 (bus-enabled with 32 blocks)
  • Power: 24VDC
  • Weight: 0.2kg
  • First Analog Output: 0 to 10V, +/-10V, 0 to 20mA or 4 to 20mA.
