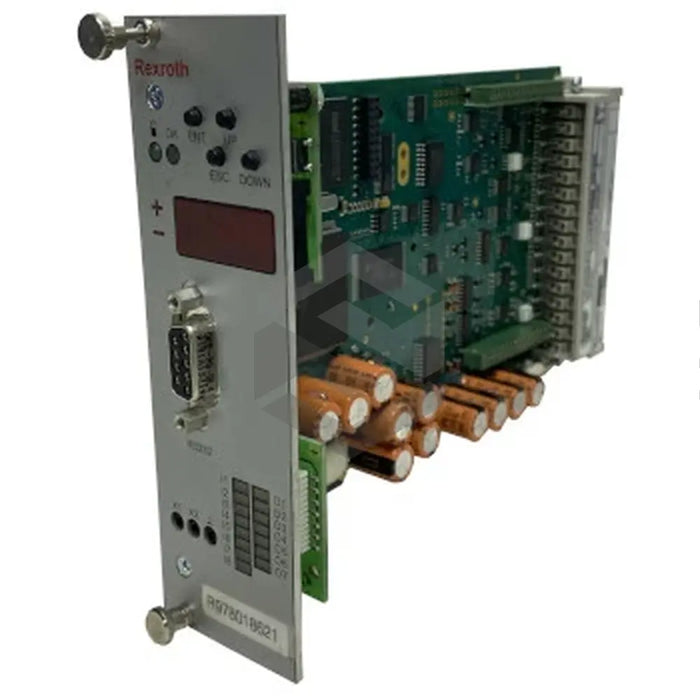

VT-HACD-1-16/V0/1-0-0
The VT-HACD-1-16/V0/1-0-0, manufactured by Bosch Rexroth Indramat, is a versatile controller card designed for industrial applications, part of the HACD series. It operates on a nominal 24 Volts DC supply, with an allowable input range of 21 to 30 Volts DC, consuming 250 milliamps in standby mode. This compact card measures 128 x 40 x 195 mm and weighs 0.2 kg. It features a 2 ms scan time, a 64-pole multipoint connector, and an RS-232 serial interface for communication and configuration via BODAC software. With three analog outputs (0-20 mA, 4-20 mA, ±10V, 0-10V), six analog inputs (4-20 mA, 0-10V, ±10V), eight digital inputs, and seven configurable digital outputs, it offers flexible integration. Admissible operation temperatures are 0 to 50°C, with a storage range of -20 to 70°C. A parameterizable ramp function, along with enable and OK outputs, enhances its functionality, requiring skilled personnel for operation.
