VT-HACD-1-1X-V0-1-0-0

Original price $5,734.00 - Original price $5,734.00
Original price
$5,734.00
$5,734.00 - $5,734.00
Current price $5,734.00
In Stock, Ships 3 - 5 Days
Request a quote

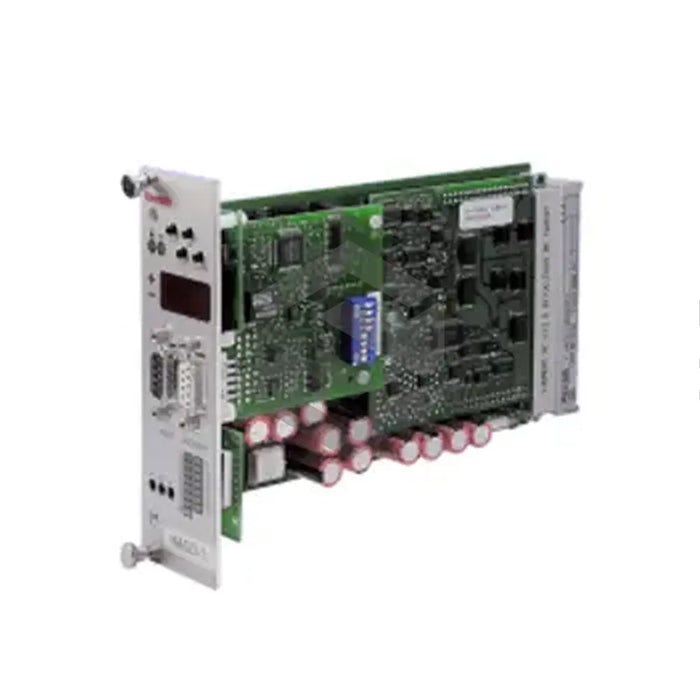

The VT-HACD-1-1X-V0-1-0-01 is a digital command value and controller card produced by the Rexroth Bosch Group. This distinctive device can manage two control circuits simultaneously and boasts a microcontroller, non-volatile FLASH storage for parameters and command values, and a serial RS 232 interface. Featuring an interface with a front display and four keys, it requires a connection to a personal computer operating on Windows 7, XP, or Vista for software configuration. The setup requires a 1:1 RS 232 cable and utilizes 64 MB of memory plus 250 MB of hard disk space. Enhanced functionality like diagnosing and parameterizing the card, and controller structure configuration is enabled by BODAC PC program. The card, while undertaking different trigger operations, offers a broad display range for digital inputs and outputs, flags, and process variables. It also provides a comprehensive system for monitoring various components.
30 Day Warranty
Technical Specifications
  • Product Type: VT-HACD-1-1X-V0-1-0-01 Component Series Card
  • Manufacturer: Rexroth Bosch Group
  • Control Circuits: Two
  • Interface: Serial RS 232
  • Function: Ramp function (parameterizable)
  • Front Display: Yes, featuring four keys
  • Microcontroller: Yes, for connections, adjustments, and closed control loops
  • Memory: FLASH for non-volatile storage
  • PC Compatibility: Windows 7, Windows XP, Windows Vista
  • Connection: 1:1 RS 232 Cable via Serial Interface
  • Memory Requirement: 64MB
  • Hard Disk Space Required: 250MB
  • Software Characteristics: Dialog functions, Dialog window, Cannot modify configuration via the front display
  • Trigger Operations Support: Yes
  • Display Options: Digital inputs and outputs, Flags, Process variables
  • Predefined Set of Attributes: Yes (e.g., ramp active, waiting time completed, command value = actual value)
  • Controller Structure: PIDT1 (when operating as a controller card)
  • Monitoring Capabilities: Analog inputs, Microcontroller, Position sensor, Memory and supply, 10V reference, Internal voltages.
