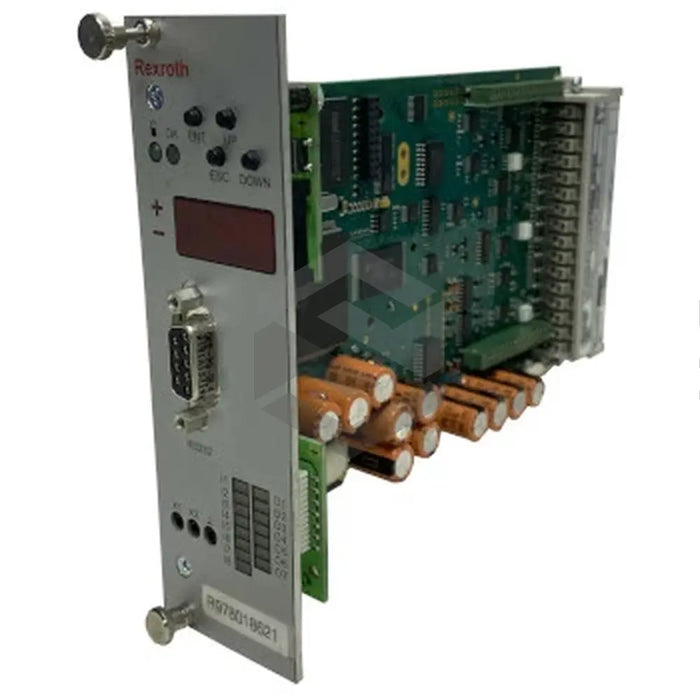

series image of VT-HACD-1-1X-V0-1-P-1

VT-HACD-1-1X-V0-1-P-1

by Bosch Rexroth Indramat
$3,614.63 - $3,614.63
$3,614.63
$3,614.63 - $3,614.63
$3,614.63
Available, Shipping Varies
The VT-HACD-1-1X-V0-1-P-1, a digital card product by Bosch Rexroth Indramat, serves as a command or controller card with a Profibus bus connection. It features a valve output stage for 4WRE, component series 2X with two solenoids (only when connected with Profibus). Configurable with a RS-232 serial interface, this product provides an analog output, and has a front display with keys for displaying and modifying parameters. It also facilitates a zero point correction and overlap compensation adjustment to hydraulic drive. Furthermore, it provides ±10 Volts reference voltage outputs, nine analog outputs, eight digital inputs, and seven configurable digital outputs. Ability to switch between voltage and current inputs on the six analog ones is provided. Front panel access to various parameters, PC configuration options via BODAC software, and diagnostic options all add to its versatility. It employs a 64-pole male multipoint connector and operates on 24 Volts DC nominal input, weighing 0.2 kg.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product ID: VT-HACD-1-1X-V0-1-P-1
  • Product Type: Digital Card
  • Usage: Command Card or Controller Card
  • Bus Connection: Profibus
  • Valve Output Stage: 4WRE, component series 2X
  • Interface: RS-232 Serial Interface
  • Analog Output: Configurable
  • Front Display: Keys for parameter display and modification
  • Correction Feature: Zero point correction and overlap compensation
  • Reference Voltage Outputs: ±10 Volts
  • Analog Outputs: Nine
  • Digital Inputs: Eight
  • Configurable Digital Outputs: Seven
  • Switchable Inputs: Voltage (±10 Volts, 0 to 10 Volts) and Current (4 to 20 milliamps) for six analog inputs
  • Accessible Parameters: Command value and ramp parameters, actual values, control parameters, output parameters, analog I/O, and position sensors
  • Diagnostic Options: Display of command and actual values, error messages output
  • Configuration: Card can be configured from a PC-based software, BODAC (Not Supplied)
  • Communication: PC-to-card via serial connection
  • Needed Accessories: Interface cable, USB adapter and Profibus connector
  • Power Input: 24 Volts DC nominal
  • Product Weight: 0.2 kilograms
  • I/O Interface: 64-pole male multipoint connector.
