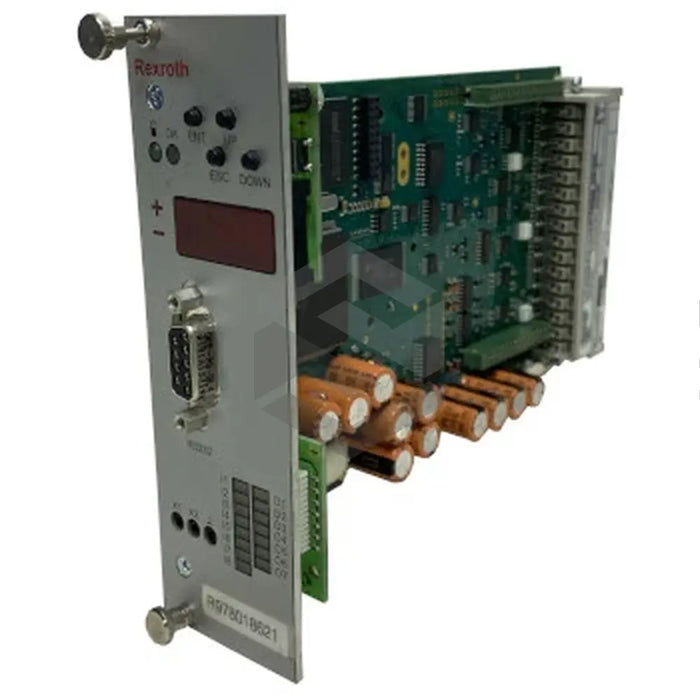

S image of VT-HACD-3-22/E-I-00-000

VT-HACD-3-22/E-I-00-000

by Bosch Rexroth Indramat
$6,181.25 - $6,181.25
$6,181.25
$6,181.25 - $6,181.25
$6,181.25

In Stock, Ships 1 - 3 Days

The VT-HACD-3-22/E-I-00-000 digital card, manufactured by Bosch Rexroth Indramat, functions both as control electronics and command value card. It integrates a PIDT1 controller with optional feedback in control loops and facilitates signal linking, generation, and standardization. The card supports serial communication via an RS-232 interface and includes an Ethernet interface for network connectivity. It operates on 18 to 30 Volts DC, with a nominal input of 24 Volts DC and a current consumption of 200mA. Featuring a 32-bit Power PC processor, it offers six analog inputs supporting -15 to 15 Volts voltage and 0 to 20mA current, and three analog outputs configurable to 0 to 10 Volts or ±10 Volts, with selectable output current ranges. It requires BODAC software for configuration, needing a computer with 64MB RAM and 250MB storage. The card's operating temperature is 0 to 50°C, and it conforms to IP20 protection standards, weighing 1162 grams.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth

Product Type

Digital card

Model

VT-HACD-3-22/E-I-00-000

Function

Control electronics card; Command value card

Control Loop Type

PIDT1 controller

Interface

Serial RS-232; Ethernet

Processor

32-bit Power PC

Software Requirement

BODAC

Software Installation Requirements

64 MB RAM; 250 MB hard disk space

Operating Voltage

18 to 30 Volts DC

Nominal Input

24 Volts DC

Current Consumption

200 milliamps at 24 Volts DC

Analog Inputs

6

Analog Input Voltage Range

-15 to 15 Volts

Analog Input Current Range

0 to 20 milliamps

Analog Outputs

3

Analog Output Voltage Range

0 to 10 Volts; ±10 Volts

Analog Output Current Range

Selectable 0 to 20 / 4 to 20 milliamps

Reference Voltage

+10 Volts per axis electronics

Admissible Operating Temperature

0 to 50 degrees Celsius

Storage Temperature

-20 to 70 degrees Celsius

Protection Class

IP20

Weight

1162 grams

Dimensions

120 x 86 x 123 millimeters
