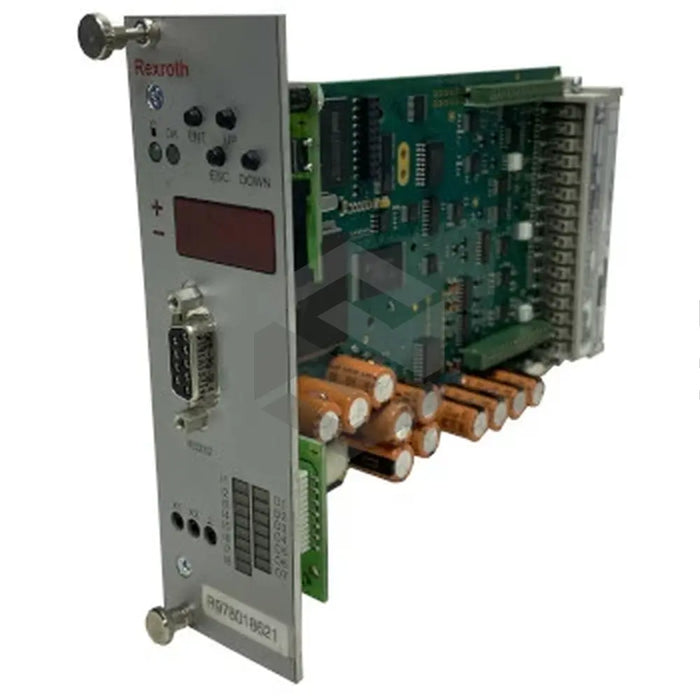

series image of VT-HACD-3-2X-0-I-00-000

VT-HACD-3-2X-0-I-00-000

by Bosch Rexroth Indramat
Request a quote
The VT-HACD-3-2X-0-I-00-000, manufactured by Bosch Rexroth Indramat, is a highly efficient and safety optimized control electronic that caters to three control loops - pressure, position, velocity, and force control. This dynamic system finder application in various areas including special purpose machines, machine tools with electro-hydraulic axes, plastic processing machines, and transfer press systems. A PIDT1 controller provides additional robustness to the system which can be customized to suit individual requirements. Mounting of this controller should be executed on 35mm rails complying with the EMC directive of 2004 108/EC. The power of the system is determined by a microcontroller, while all required configurations data resides within a non-volatile flash memory. Configuration, diagnostics, and parameterization are executed through the BODAC PC program. For setting address, the control electronic system relies on an integrated switch and connects to a PC via a serial interface cable.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Model: VT-HACD-3-2X-0-I-00-000
  • Control Loops: 3 (pressure, position, velocity, force)
  • Controller: PIDT1
  • Optional Feedback: State feedback connected with hydraulic axes
  • Uses: Signal standardization, link generation
  • Applicable Industries: Special purpose machines, machine tools with electrohydraulic axes, plastic processing machines, transfer press systems
  • Functions: Positioning, controlling pressure, sequence parameterization, force control, and tables
  • Mounting Requirement: 35mm rails (EMC directive of 2004 108/EC compliant)
  • Microcontroller: Included
  • Data Storage: Non-volatile flash memory
  • Configuration Program: BODAC (for configuration, diagnostics, parameterization)
  • Hardware Switches: For setting address only
  • Connection: Via serial interface cable to PC or local bus
