VT-HACD-510-1X/V0/EFF00246

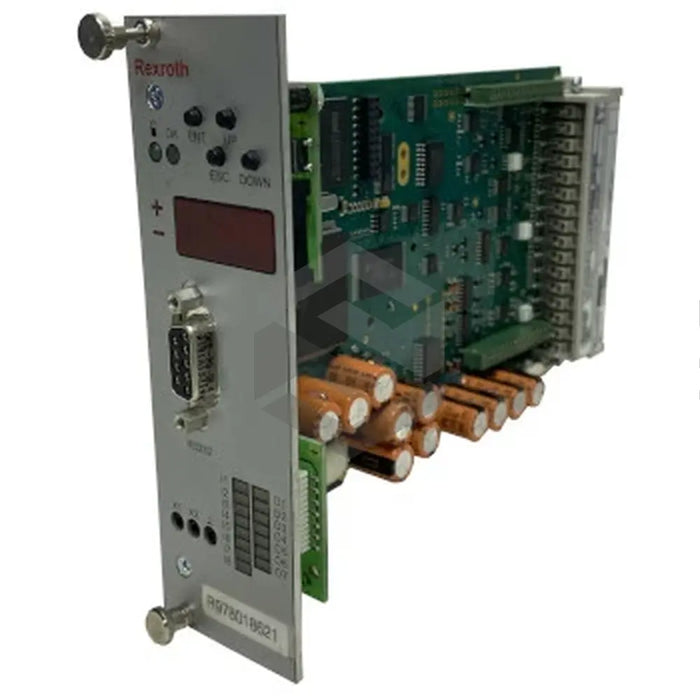

The Bosch Rexroth Indramat VT-HACD-510-1X/V0/EFF00246 is a digital card from the VT-HACD series that functions as either a command value card or controller card. As a command value card, it standardizes signals, while as a controller card, it incorporates a PIDT1 controller for closed-loop control with optional state feedback support. The card operates on a nominal input voltage of 24V DC, with a range of 21 to 30V DC, and consumes 250mA in standby. It includes a 4A protective fuse and features a scan time of 2ms. Configuration is achieved via an RS-232 interface using the BODAC software, which requires a computer with 64 MB RAM and 250 MB of free space. The card supports operating temperatures from 0 to 50°C and storage from -20 to 70°C. Weighing 0.2 kg, it adheres to Eurocard dimensions (100 x 160 mm).
