S image of VT-HACD-DPQ-1-20-V0-1-0-0

VT-HACD-DPQ-1-20-V0-1-0-0

by Bosch Rexroth Indramat
$12,087.90 - $12,087.90
$12,087.90
$12,087.90 - $12,087.90
$12,087.90

In Stock, Ships Fast

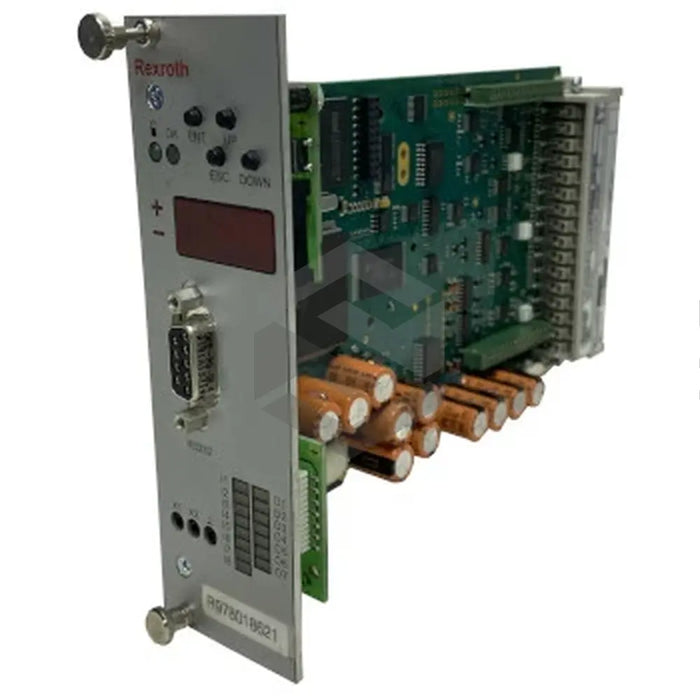

The VT-HACD-DPQ-1-20-V0-1-0-0 by Bosch Rexroth Indramat is a high-performance digital control electronics component for electro-hydraulic injection molding machines. As a member of the VT-HACD-DPQ, Component Series 2x family, it facilitates precise control of numerous engineering operations. The unit, designed as a Eurocard printed circuit board measuring 100mm by 160mm, features a display with four buttons for modifying parameters like injection profile and transition parameters. Notably, it provides error messages for precise problem-solving. It utilizes a 64-pole male multipoint connector, conforming to DIN 41612, design G. Its valve control spool is freely configurable, supported by Enable input and OK output functions along with an RS232 serial interface for BODAC PC program parameterization. Operating at a nominal voltage of 24 VDC, it requires an ambient temperature from 0oC to 50oC. It draws 150mA of current and provides a reference voltage of ±10 V.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Digital Control Electronics Component

Series

VT-HACD-DPQ, Component Series 2x

Usage

Electro-Hydraulic Injection Molding Machines

Unit Type

Basic Unit for One Axis

Display

Unit with Four Buttons

Adjustable Parameters

Injection Profile, Transition Parameters, Holding Pressure Profile, Worm Retraction, Decompression Parameters

Connector Type

64-Pole Male Multipoint Connector DIN 41612, Design G

Dimensions

Eurocard Printed Circuit Board of 100mm Width and 160mm Height

Control Spool

Free Configuration

Functions

Enable Input and OK Output

Interface

RS232 Serial Interface

Software

BODAC PC Program

Operating Voltage

24 VDC

Ambient Temperature

0 to 50°C

Current Consumption

150mA

Reference Voltage

±10 V
