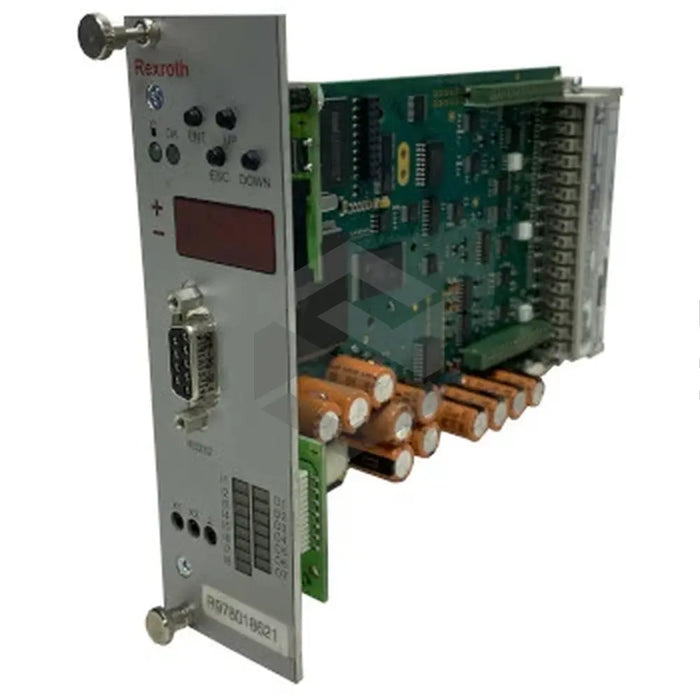

S image of VT-HACD-DPQ-2X-V1-1-C-0

VT-HACD-DPQ-2X-V1-1-C-0

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
Produced by Bosch Rexroth Indramat, the VT-HACD-DPQ-2X-V1-1-C-0, is a digital controller card notable for its construction quality and diverse application. This model contains 32 blocks of controller parameters that allow for responsive closed-loop control. The unit, with a minimal weight of 0.2 kg, offers optional state feedback through a PIDT1 microcontroller and includes digital inputs and outputs for increased flexibility. Distinguished by its varying digital input-output voltage ranges and integrated RS232 serial interface, along with an SSI digital position transducer with an RS485 line receiver, it ensures reliable operation. It operates within -20 to +70 degrees Celsius temperature range and works optimally on a computer possessing 64 MB RAM. With a 2 ms scan rate, a 64-pole male multipoint connector complying with DIN 41612 standards, 150mA of current use, and a 4A lagged fuse, this model provides a dependable, accurate solution for various digital control applications.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

VT-HACD-DPQ-2X-V1-1-C-0

Weight

0.2 kilograms

Function

Controller Card

State Feedback

Optional

Microcontroller

PIDT1

Digital Inputs and Outputs Voltage Range Log 0

0 to 5 V

Digital Inputs and Outputs Voltage Range Log 1

16 to 24 VDC

Serial Interface

RS232

Digital Position Transducer

SSI with RS485 line receiver

Output Reference Voltage

-+/-10V

Operating Temperature

-20 to 70 degrees Celsius

RAM Required

64 MB

Analog Output A01

0 to 20 mA or 4 to 20 mA with a 500-ohm load

Scan Rate

2 ms

Connection

64-pole male multipoint connection according to DIN 41612

Analog Output A02/03 Voltage

10 V

Analog Output A02/03 Ripple

+25 mV

Current Use

150 mA

Fuse

4 A with lag time
