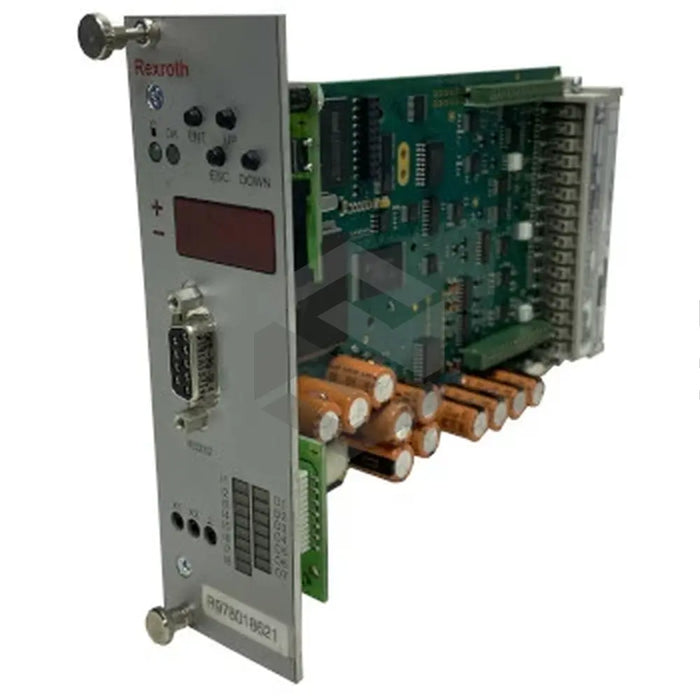

S image of VT-HACD-DTC-11-V2-1-C-0

VT-HACD-DTC-11-V2-1-C-0

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The VT-HACD-DTC-11-V2-1-C-0 is a basic digital controller card produced by Bosch Rexroth Indramat, created to facilitate position control via force control or overlaid pressure. Its distinct features include a 64-pole male multipoint connection compliant with DIN 41612 standards and an input current range adjustable between 0 to 20 mA or 4 to 20 mA, with a precision of 5 microamperes. The card holds no bus connection or valve output stage, but enables alteration of analog outputs through amplification and adjustment, and configuration of digital outputs setting internal and error flags. With a working voltage of 21-30V, a temperature operational range of 0-50 degrees Celsius, the card provides comprehensive monitoring capabilities. The durable model, weighing 0.2kg, possesses an SSI digital position transducer with a RS485 line receiver, operates at a scan rate of 2ms, and has a current consumption of 150 mA.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

VT-HACD-DTC-11-V2-1-C-0

Connection

64-pole male multipoint connection according to DIN 41612

Control options

Position control through force control or overlaid pressure

Analog current input range

0 to 20 mA or 4 to 20 mA

Resolution

5 microamperes

Bus connection and a valve output stage

None

Analog outputs modification

Amplification and adjustment

Digital outputs configuration

Set the internal flag and the error flag

Fuse

4 A time lag

Minimum working voltage

21 V

Maximum operating voltage

30 V

Monitor capabilities

Memory, 10 V reference voltage, internal voltages, and supply voltage

Operating Temperature

0 to +50 degrees Celsius

Weight

0.2 kilos

Position transducer

SSI digital with an RS485 line receiver

Load resistance when first analog output is set as voltage output

1 kiloohm

Front plate width on soldering side

0.2 inches

Physical Dimensions

100 x 160 mm

Storage Temperature

-20 to +70 degrees Celsius

Scan rate

2 ms

Current consumption

150 mA.
