VT-HNC100-1-1X-130

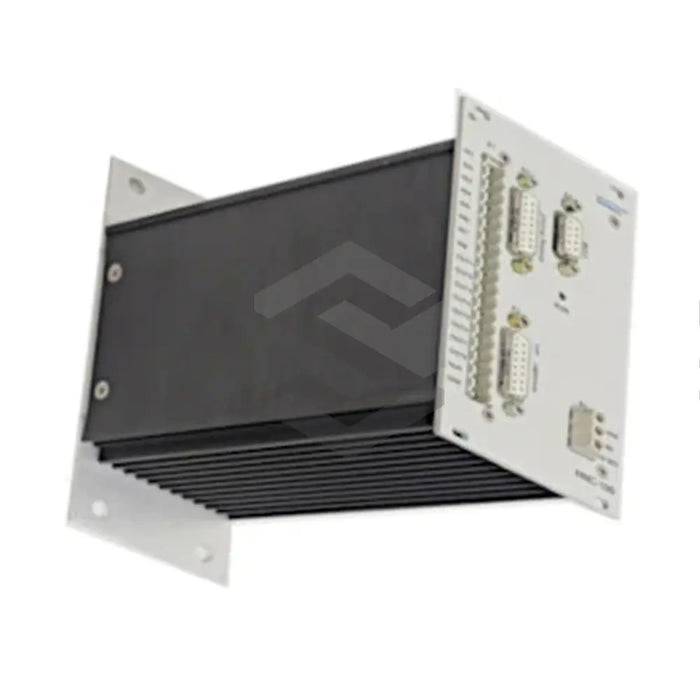

The Bosch Rexroth Indramat VT-HNC100-1-1X-130 digital axis controller from the VT-HNC Digital Axis Controllers series delivers precise hydraulic axis management. With a Component Series: 10 to 19 and a Hydraulic Variant: 1 Hydraulic Axis, it integrates seamlessly into sophisticated motion systems. Factory-assigned Bus Connection and Type of Installation specifications ensure streamlined setup and commissioning for tailored industrial applications.
Equipped with four analog inputs and an incremental transducer (0 to 1 V) interface, the VT-HNC100-1-1X-130 operates within an 18 to 36 VDC voltage range and consumes only 8 W of power. The power supply is short-circuit protected, ground-balanced, and synchronizable between 4.8 and 5.2 kHz. Additional interfaces include four current inputs (4–20 mA), a standard RS232 serial connection, and flexible switching conductors up to 1.5 mm² for 8, 16, or 24 I/O channels. At its core, a 16/32 Bit MC68376 CPU is supported by 1 MB Flash EPROM, 8 KB EEPROM, and 256 KB RAM to execute real-time control algorithms with high reliability.
Designed for robust industrial environments, this controller features impedance inputs with an input voltage range of –10 V to +10 V, input resistance <10 MΩ, and factory-set calibration tolerance of 40 mV. It operates safely within 0 to +50 °C and provides a +10 V reference output. High-resistance inputs preclude internal capacitors or diodes; all EMC safety regulations must be observed, and signal filtering is implemented externally. Shipped globally with a one-year warranty, the VT-HNC100-1-1X-130 enhances efficiency, reliability, and precision in advanced hydraulic motion control applications.
