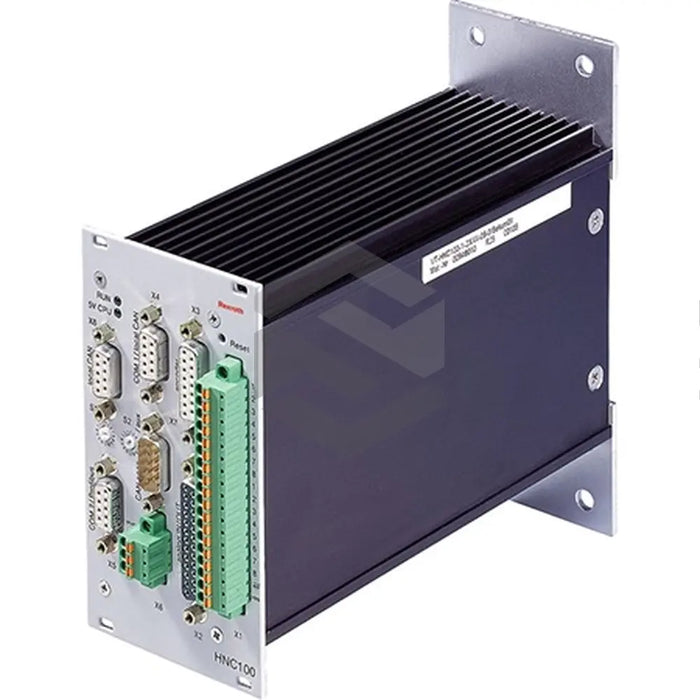

S image of VT-HNC100-1-2X-W-08-I-0

VT-HNC100-1-2X-W-08-I-0

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The VT-HNC100-1-2X/W-08-I-0 digital axis control is a Bosch Rexroth Indramat manufactured product compatible with WIN-PED software. It functions based on used datasets and offers position-dependent braking. It features reserved pins on its X1 and X3 connectors and has a load resistance of 1 Ohm for its analog outputs. Digital inputs boast a 0V to 1V voltage range while the analog inputs/outputs are connected to Pin 12 and Pin 13 of the X2 connector. The device also supports SSI encoder or incremental encoder connectivity via the X3 connector. It's designed for easy programming and diagnosis, and comes with a one-year backup support. This control unit operates via an Inter-Bus bus system and provides multiple interfaces for the measuring systems. Constructed in a durable, rugged housing, this device ensures reliable operation within -20°C to 70°C temperature range. Its features largely depend on the closed-loop algorithms in use.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

VT-HNC100-1-2X/W-08-I-0

Software Compatibility

WIN-PED software

Functionality

Digital Axis Control, Position-dependent braking

Hardware Requirements

Computer with Windows OS, 8MB RAM (16MB Recommended)

Connectors

Reserved Pins on X1 and X3

Load Resistance

1 Ohm for analog outputs

Digital Inputs

Logic 0 with input voltage 0V to 1V

Conductors Specification

Flexible conductors up to 1.5mm2 cross-section for switching inputs and outputs

Storage Temperature

-20°C to 70°C

Voltage Supply Connection

Pin 12 and Pin 13 of the X2 connector

Connectivity

Compatible with SSI encoder or incremental encoder via X3 connector

Residual Ripple Current

-/+60mV without noise

Functionality

Parameterizing, Programming, Editing, Diagnosis

Output Controls

M90 and M91 NC commands

Field Bus System

Inter-Bus connector

Physical Characteristics

Rugged housing for durability and stability.
