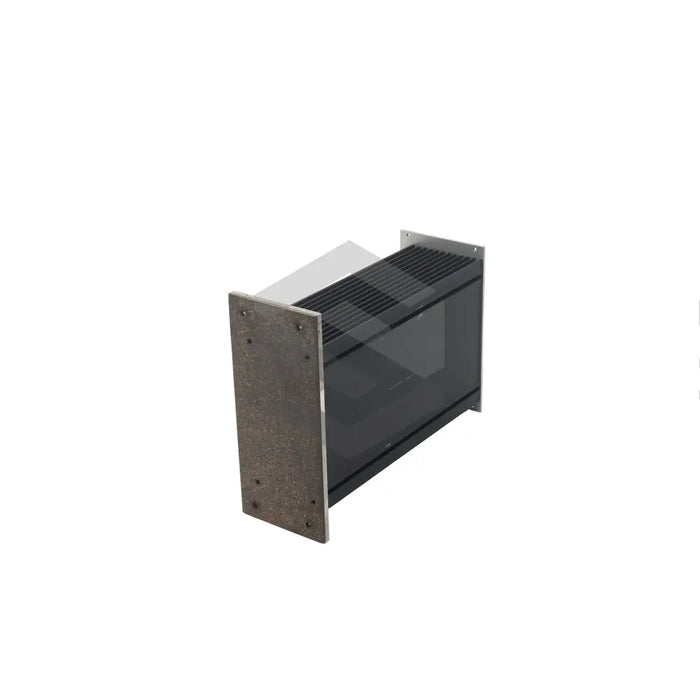

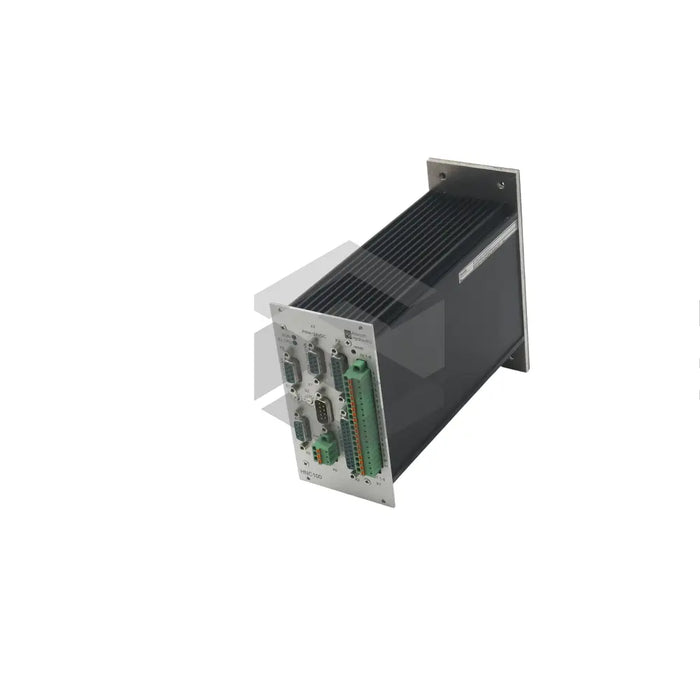

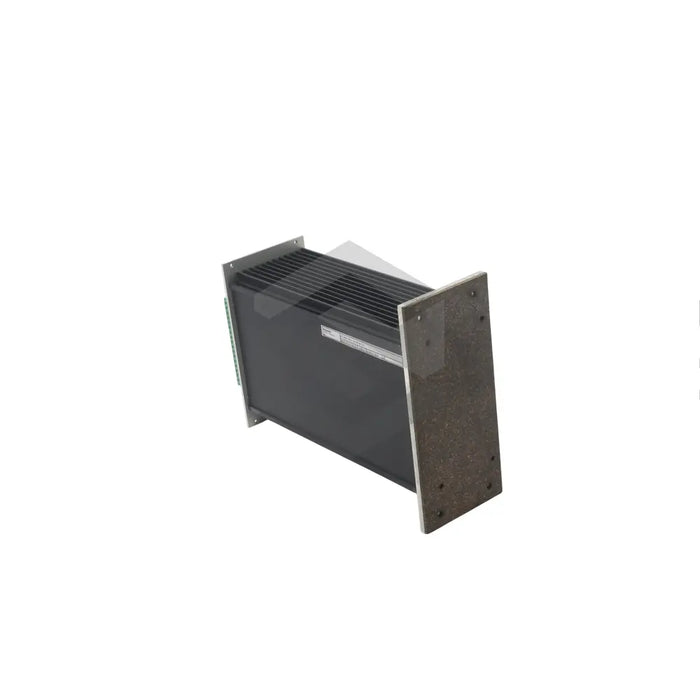

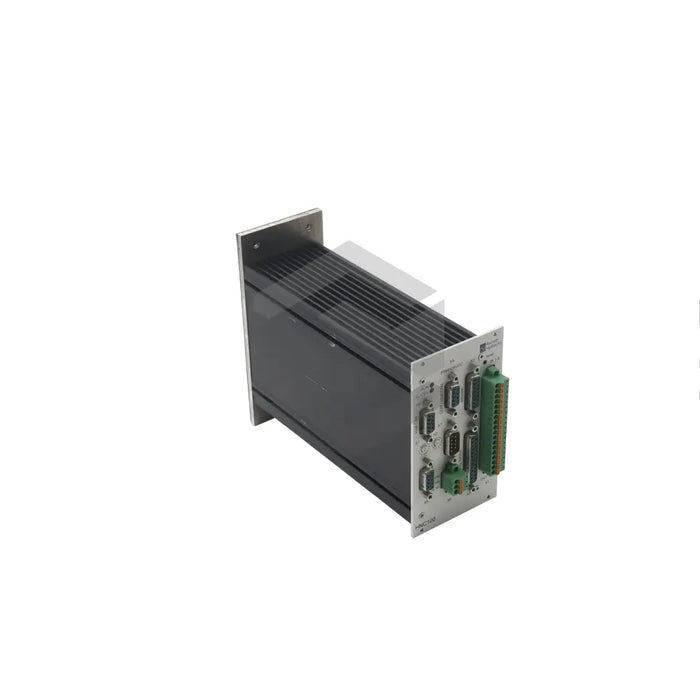

VT-HNC100-1-2X-W-08-S-0

The Bosch Rexroth Indramat VT-HNC100-1-2X-W-08-S-0 digital axis controller belongs to the distinguished VT-HNC Digital Axis Controllers series and carries the part_number VT-HNC100-1-2X-W-08-S-0 from manufacturer Bosch Rexroth Indramat. This controller is tailored for the 1X 10 to 19 component series and is specifically designed to regulate a hydraulic axis in complex industrial machinery. With an Operating Voltage range of 18 to 36 VDC and a steady Power Consumption of 8 W, the unit balances performance with energy efficiency. The controller employs a robust 16/32-bit MC68376 processor to execute precision control algorithms in real time. Factory-assigned bus connections ensure unique integration, while the optional PROFIBUS serial interface and standard SERCOS interfacing option facilitate seamless network communication. Compact yet powerful, this unit measures 71 x 155 x 204 mm (W x H x D) and weighs just 1 kg, enabling high-density rack installations without sacrificing space or serviceability.

Performance and precision are at the heart of the VT-HNC100-1-2X-W-08-S-0. Dual inductive position transducers provide closed-loop feedback with a maximum current of 30 mA per channel and a 2 V voltage supply, complemented by an optional grey code SSI transducer for absolute positioning. The controller’s memory architecture includes 1 MB of EPROM, 8 KB of EEPROM, and 256 KB of RAM to support advanced motion profiles, diagnostic routines, and firmware updates. Four analog voltage outputs deliver a +10 mA output current into a 1 kΩ load, while four analog current inputs feature a 100 Ω input resistance and maintain a power loss between 0.1% and 0.4% for high-fidelity signal acquisition. Housing for rack installation provides rugged protection and contributes to an overall Type of Installation rating of Housing for rack installation. All electronic and hydraulic drive control functions are synchronized through the high-speed SERCOS bus or optionally via PROFIBUS, ensuring deterministic cycle times and minimal latency.

Engineered for demanding industrial environments, the VT-HNC100-1-2X-W-08-S-0 delivers outstanding reliability and uptime. It operates seamlessly across an ambient operating temperature range of 0 to +50°C and can be stored safely between -20 to +70°C, supporting diverse process conditions. Compliance with EC guidelines guarantees adherence to stringent safety and electromagnetic compatibility standards. The compact Housing for rack installation design simplifies integration into existing frames or control cabinets, and the controller’s modular architecture allows expansion to multi-axis configurations by combining additional VT-HNC units. Ideal for hydraulic regulation tasks such as pressure control, force feedback, and velocity profiling, this controller excels in automotive manufacturing, metal forming presses, and material handling systems where precision and durability are paramount.
