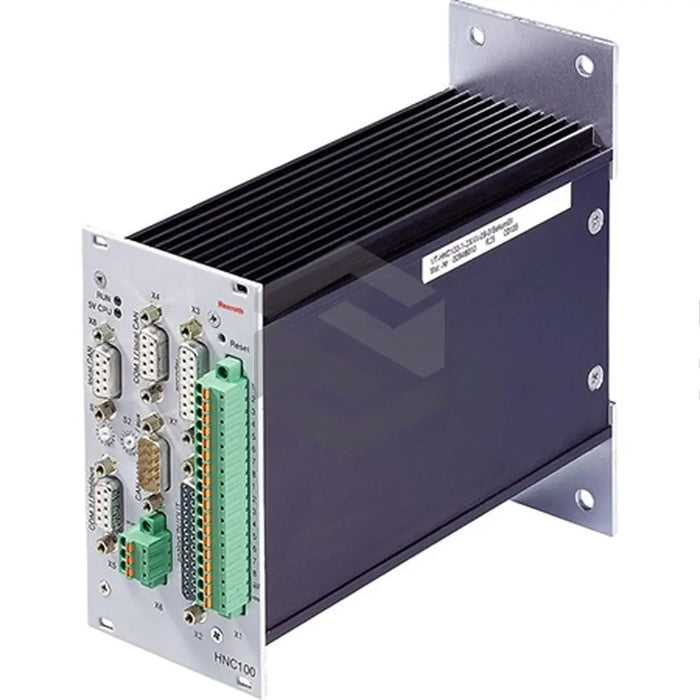

series image of VT-HNC100-1-2X-W-24-0-0

VT-HNC100-1-2X-W-24-0-0

by Bosch Rexroth Indramat
$4,140.74 - $4,140.74
$4,140.74
$4,140.74 - $4,140.74
$4,140.74
In Stock, Ships 3 - 5 Days
The VT-HNC100-1-2X/W-24-0-0, engineered by Bosch Rexroth Indramat, operates on an 18-36 VDC power range, drawing 8W of power, and demonstrating a power loss between 0.1-0.4%. Equipped with four analog current inputs, ranging from 4-20mA, this model also features RS232 serial connection standard. It measures 71 x 155 x 204 mm (W x H x D) and weighs 1 kg. It incorporates safe electrical separation through mechanisms such as isolating transformers, optocouplers, and mains-free battery operation. It includes four analog inputs (200 Kohms resistance and 5 mV resolution), a grey code SSI transducer (28-bit data width, 0-0.5V output), Flash EPROM (1 MB), EEPROM (8 KB), and RAM (256 KB). The model comprises a 16/32 Bit MC68376 CPU and pairs of position and impedance transducers. It undergoes extensive pre-shipment testing to ensure performance.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Digital Axis Controller
  • Model Number: VT-HNC100-1-2X-W-24-0-0
  • Analog Current Inputs: 4
  • Input Current: 4 mA to 20 mA
  • Power Loss: 0.1-0.4 percent
  • Working Voltage Range: 18 to 36 VDC
  • Power Requirement: 8 W
  • Serial Connection Standard: RS232
  • Physical Dimensions: (71 x 155 x 204 mm) W x H x D
  • Safety Measures: Isolating Transformers, Safe Optocouplers, Mains-Free Battery Operation
  • Analog Inputs: 4
  • Input Resistance: 200 Kohms
  • Resolution: 5 mV
  • Transducer Type: Grey Code SSI
  • Data Width: 28 bits
  • Output Voltage: 0 to 0.5 V
  • Flash EPROM: 1 MB
  • EEPROM: 8 KB
  • RAM: 256 KB
  • Weight: 1 Kilogram
  • CPU Type: 16/32 Bit MC68376
  • Position Transducers: 2
  • Voltage Supply for Transducers: 2 V
  • Analog Impedance Inputs: 4
  • Input Voltage Range for Impedance Inputs: -10 V to +10 V
  • Input Resistance of Impedance Inputs: Below 10 Mohms
  • Factory-Set Calibration Tolerance: 40 mV
