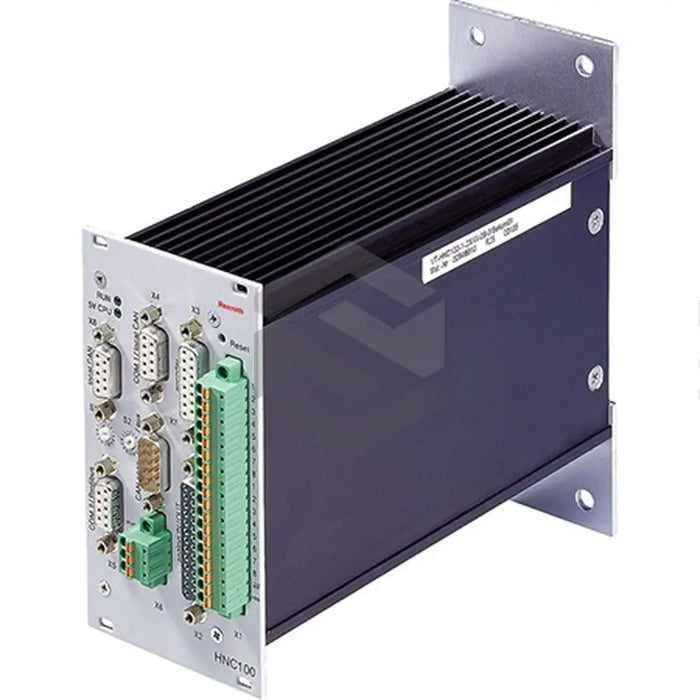

series image of VT-HNC100-4-30/E-I-00-G04

VT-HNC100-4-30/E-I-00-G04

by Bosch Rexroth Indramat
Request a quote
The Bosch Rexroth Indramat VT-HNC100-4-30/E-I-00-G04 belongs to the VT-HNC Digital Axis Controllers series and runs on 18–36 V DC. It provides G04 4-axis synchronization, ±10 V analog outputs at 1.25 mV resolution, with an MC68376 processor. The unit includes an EtherNet/IP interface and supports 4–20 mA outputs with up to 500 Ω load resistance.
30 Day Warranty
Technical Specifications
  • Analog Output Resolution: 1.25 mV
  • Bus Interface: EtherNet/IP; supports Incremental/SSI transducers
  • Current Input: 4ch; 4–20 mA; 5 μA res; 100 Ω ±0.2% (max 500 Ω)
  • Digital Transducer Interface: Incremental TTL; 0–1 V (0), 2.8–5.5 V (1); 250 kHz
  • Max Current Output Load Resistance: 500 Ω
  • Number of Hydraulic Axes: 4
  • Operating Voltage: 18–36 V DC
  • Output Current: 4–20 mA; ±23 mA max (not normalized)
  • Output Non-linearity: ≤15 mV (±9.5 V); ≤35 mV (9.5–10 V)
  • Processor & Memory: MC68376; Flash 1 MB; EEPROM 8 KB; RAM 256 KB
  • Residual Ripple: ±60 mV (no noise)
  • Synchronization Option: G04 (4-axis sync)
  • Voltage Input: ±10 V (max ±15 V); 5 mV; 200 kΩ ±2%; ≤40 mV tol
  • Voltage Output: ±10 V (max ±10.7 V); 1 kΩ load; ±10 mA max
