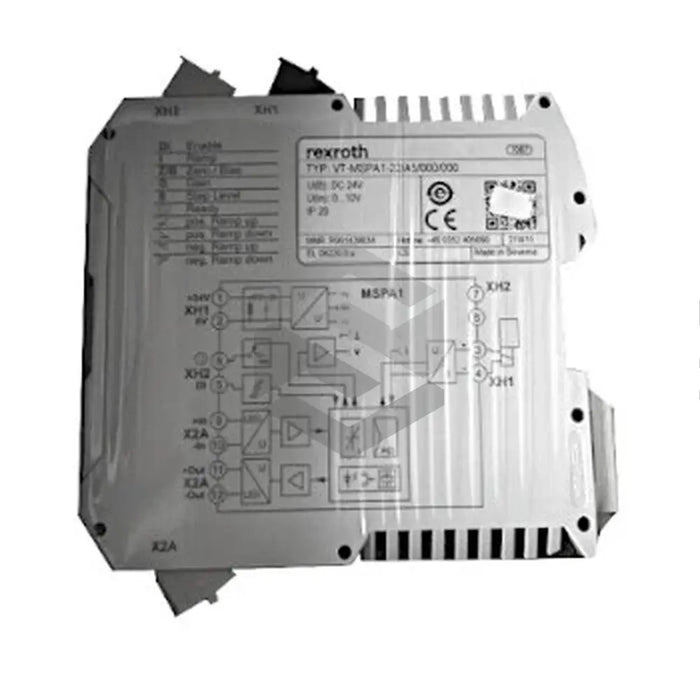

manufacturer image of VT-MSPA1-22-A5-000-000

VT-MSPA1-22-A5-000-000

by Bosch Rexroth Indramat
$1,986.17 - $1,986.17
$1,986.17
$1,986.17 - $1,986.17
$1,986.17
In Stock, Ships 1 - 2 Days
The VT-MSPA1-22-A5-000-000 is a superior industrial valve amplifier from Bosch Rexroth Indramat, renowned for its state-of-the-art drive control systems and automation products. Stream-lined to optimally control proportional valves without electrical position feedback, this model has a maximum current limitation of 1 A and can be safely paired with explosion-protected valves featuring one or two solenoids. Users can effortlessly adjust all valve parameters, and also manage pump controllers thanks to the amplifier's dual functionality. It boasts a 0 to 10 V command value input, outputs short-circuit proof, and is fitted with measuring sockets for actual current value and internal command setting. With a robust glass-reinforced polyamide casing, it ensures shock resistance, an under a second start-up time and is designed for vertical installation. Additionally, it includes LED status displays, and a ramp generator that simplifies upward and downward movements.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Valve Amplifier
  • Control Capability: Proportional valves without electrical position feedback, Pump controllers
  • Maximum Current Limitation: 1 A
  • Command Value Input: 0 to 10 V
  • Protection: Reverse polarity of the operating voltage, Output short circuit proof
  • Additional Features: Measuring sockets, LED status displays, Ramp Generator, Characteristic curve generator
  • Design: Modular
  • Internal Circuit Protection: 3.15 A time lag fuse
  • Maximum Current Consumption: Less than 2 A
  • Power Consumption: Less than 48 W
  • Digital Inputs: Provided
  • Zero Point Calibration: Capable
  • Command Value Attenuator: Provided
  • Start-up Time: Less than a second
  • Housing Material: Glass Reinforced Polyamide Plastic
  • Installation Orientation: Vertical
  • Shock Resistance: Significant
