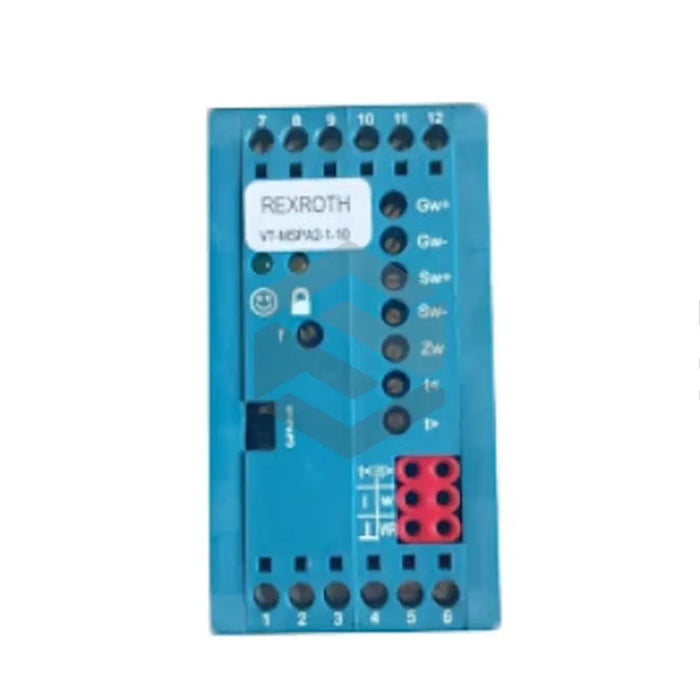

P image of VT-MSPA2-1-10-V0-0

VT-MSPA2-1-10-V0-0

by Bosch Rexroth Indramat
$2,384.44 - $4,454.62
$2,384.44
$2,384.44 - $4,454.62
$2,384.44
The VT-MSPA2-1-10-V0-0, an industrial modular amplifier by Bosch Rexroth Indramat, is tailor-made for operating proportional directional valves without position feedback. Powered by a 24V DC input, it includes an integrated making current limiter and a power supply module that caters to all internal positive and negative voltage requirements. An enable function initiates the power output stages and propagates the internal command value signal to the ramp generator. This process tapers the valve opening and prevents abrupt opening to control function better. The amplifier also includes an LED indicator and possesses an output short-circuit and over-current protection mechanism. With a peak solenoid current of 2.7 Amps, it connects via 12 screw terminals and complies with the IP20 protection rating as per EN 60715. The unit dimensions are 40 x 79 x 85.5 mm, weighs 140 grams, and has optimal performance at 0-50 degrees Celcius. Connections must only be made in switched-off mode to preserve safety standards.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Name

VT-MSPA2-1-10-V0-0

Product Type

Modular Amplifier

Intended Use

Direct Operated Proportional Directional Valves

Input Voltage Requirement

24 Volts DC

Power Supply Unit Features

Current Limiter

Enable Function Feature

Provides Power to Output Stages and Signals

Peak Solenoid Current per Output

2.7 Amps

Protection

Short-Circuit Protection for Cable and Output Stage

Ramp Generator Function

Limits Incline of Control Output

Terminals

12 Screw Connectors

Protection Class

IP20 EN 60715

Dimensions

40 x 79 x 85.5 Millimeters

Working Temperature Range

0 to 50 Degrees Celsius

Weight

140 Grams

Mounting

Top Hat Rail

Safety Precautions

Connections Should Only be Made When Switched Off

Distance from Radio Units

At Least 1 Meter
